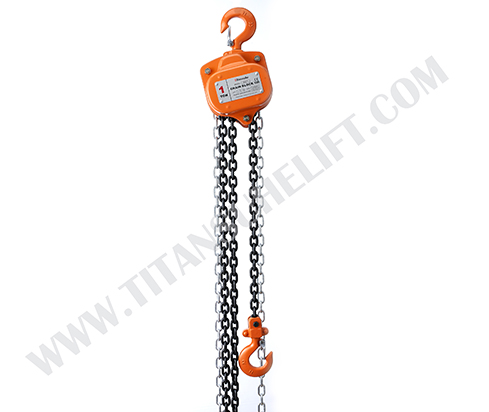

Adopting Japan Technology, Titansuhe's HSZ-A 622 chain block is an upgraded chain hoist base on the original Vital mode. This 1ton chain block is the best-selling model among all our manual chain hoists. It is designed for industrial overhead lifts in many applications. And we also produce this chain blocks model with super anti-corrosion surface treatment that is to be used for some tough applications such as the chemical industry and marine industry.
Capacity: 1ton/1000kg/2000lbs, available capacity 0.5t, 1t, 1.5t, 2t, 3t, 5t, 7.5t, 10t, 15t, 20t, 30t, 50t
Standard Lifting Height: 3m/10Ft, longer chain length available
Standard Color: Orange, other colors available
Load Chain Size: 6mm x 18mm x 1
Hand Chain Size: 5mm x 25mm
Weight: 10kg
Box Dimension: 26x19x19cm
Classic Compact Design: Originated from Japan, this HSZ-A 622 model chain block is the most classic design accepted by clients worldwide.

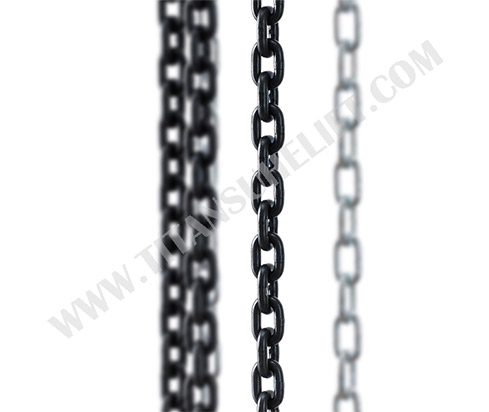

High Strength Load Chain: 6mm (1/4”) quenched and tempered load chain with black oxide finish offers durable corrosion resistance.

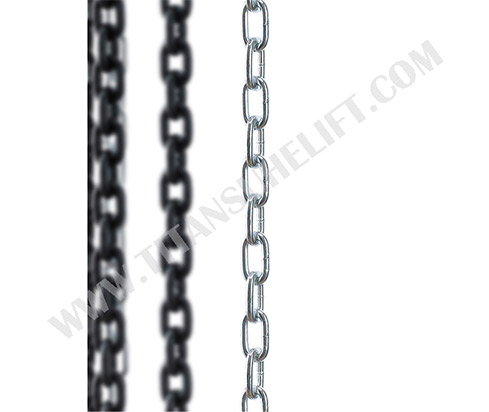

Galvanized Hand Chain: 5mm in diameter and 25mm pitch length ergonomic design enable comfortable operation when pulling this hand chain. And galvanized finish can always keep your hand clear.
Machined chain guider: Precise machined chain guider increases the hand chain touch, greatly reduce the wear and tear for both chain and guider.
Quenched and tempered gear set: 60-63 HRC hardness gear set gives high strength and strong abrasion resistance, avoid teeth brake during operation.
Automatic brake system avoid sudden falling.

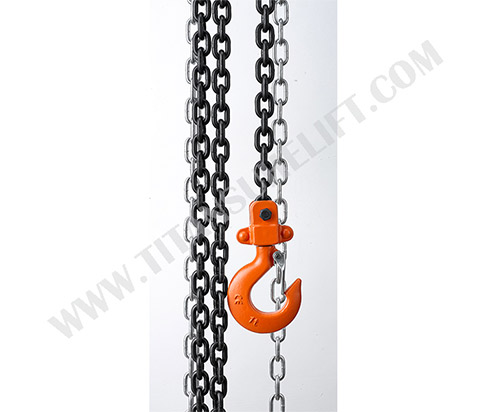

360° Swivel drop forged hooks with safety latch: Easy rotation to hook the or unhook the loads. Safety latches can prevent loads slip out from the hook.

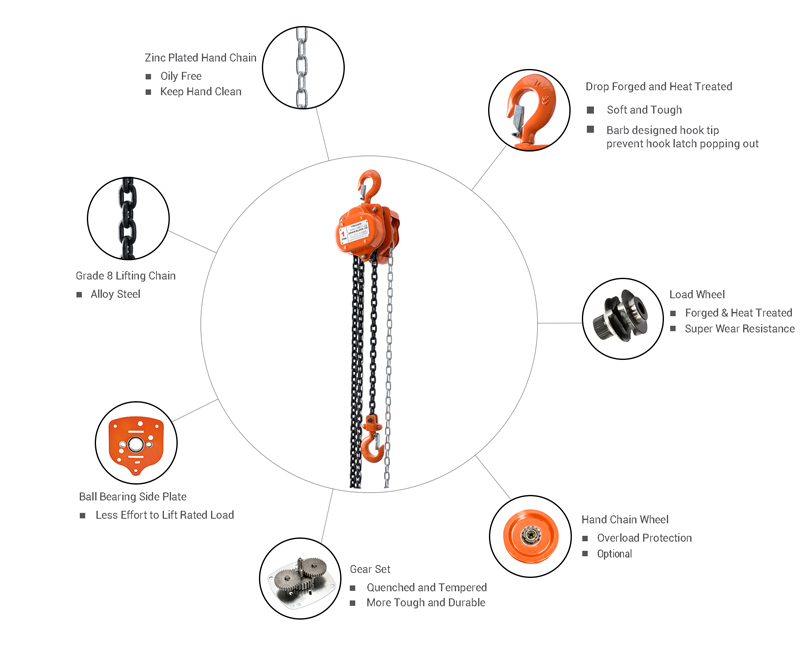

This hoist is equipped with premium alloy steel load chain 6mm, Galvanized 5mm hand chain, two drop forged hook with safety latches, quenched and tempered high strength gears, automatic brake system, bearing seated side plate, machined chain guider and powder painted thick covers.

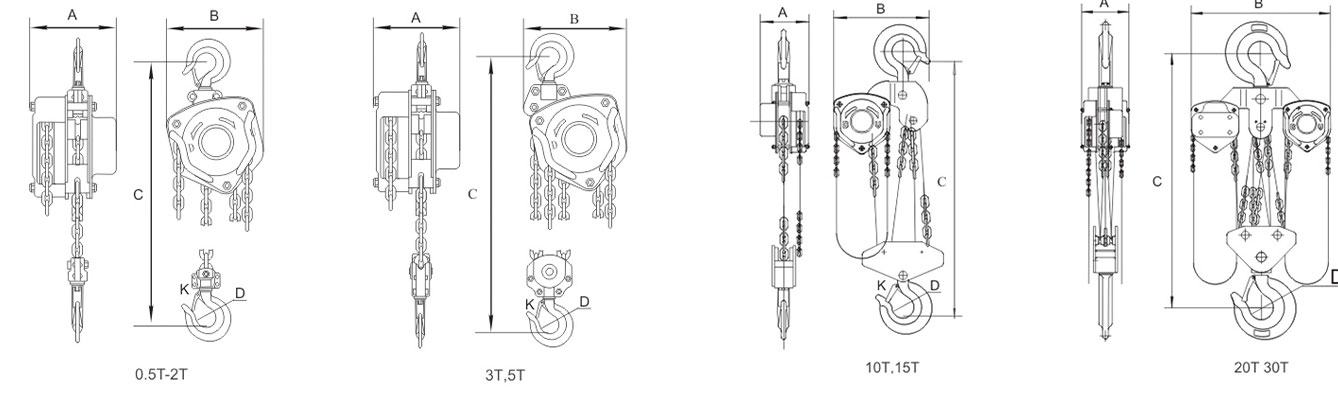

Item No. | Capacity (t) | Standard lift(m) | Proof Test Load(KN) | The effort to lift the rated load (N) | Chain Fall | Load chain size(mm) | Dimensions (mm) | Net weight (kg) | Packing measurement (cm) | Extra weight per meter of extra lift(kg) | ||||
A | B | C | D | K | ||||||||||
HSZ-A622-0.5 | 0.5 | 2.5 | 7.5 | 225 | 1 | 5x15 | 132 | 152 | 315 | 34 | 27 | 8.5 | 24.5x19x18 | 1.3 |
HSZ-A622-1 | 1 | 2.5 | 15 | 300 | 1 | 6x18 | 152 | 157 | 356 | 38 | 27 | 11 | 26x19x19 | 1.6 |
HSZ-A622-1.5 | 1.5 | 2.5 | 22.5 | 310 | 1 | 7.1x21 | 152 | 180 | 375 | 48 | 36 | 13.5 | 30.5x21x19 | 2 |
HSZ-A622-2A | 2 | 3 | 30 | 300 | 2 | 6x18 | 152 | 170 | 405 | 48 | 36 | 14.5 | 31x20x19 | 2.3 |
HSZ-A622-2B | 2 | 3 | 30 | 310 | 1 | 8x24 | 160 | 185 | 450 | 46 | 32 | 15.8 | 30x23.5x23 | 3.6 |
HSZ-A622-3A | 3 | 3 | 45 | 350 | 2 | 7.1x21 | 152 | 207 | 500 | 50 | 38 | 20.5 | 34x24x19 | 3.2 |
HSZ-A622-3B | 3 | 3 | 45 | 370 | 1 | 10x30 | 181 | 253 | 630 | 64 | 48 | 32 | 49x29x23 | 3.7 |
HSZ-A622-5A | 5 | 3 | 75 | 400 | 2 | 9x27 | 183 | 253 | 650 | 66 | 46 | 36.5 | 49x29x23 | 4.5 |
HSZ-A622-5B | 5 | 3 | 75 | 415 | 2 | 10x30 | 189 | 267 | 680 | 57 | 48 | 39.5 | 49x29x23 | 5.3 |
HSZ-A622-7.5 | 7.5 | 3 | 112.5 | 415 | 3 | 10x30 | 189 | 380 | 650 | 72 | 47 | 44 | 47x42x23 | 7.5 |
HSZ-A622-10 | 10 | 3 | 150 | 410 | 4 | 10x30 | 183 | 365 | 750 | 80 | 51 | 65 | 47x42x22 | 9.4 |
HSZ-A622-15 | 15 | 3 | 225 | 420 | 6 | 10x30 | 194 | 400 | 880 | 85 | 58 | 102 | 97x48x23 | 14 |
HSZ-A622-20 | 20 | 3 | 300 | 450x2 | 8 | 10x30 | 224 | 440 | 900 | 106 | 70 | 153 | 80x70x23 | 19.3 |
HSZ-30 | 30 | 3 | 450 | 450x2 | 12 | 10x30 | 330 | 680 | 1000 | 110 | 85 | 225 | 88x78x48 | 28.2 |
HSZ-50 | 50 | 3 | 750 | 450x2 | 22 | 10x30 | 410 | 900 | 1060 | 130 | 130 | 1085 | 160x130x75 | 50 |
Still not find the material handling equipment you need, Contact Titansuhe for custom chain pulley crane.
