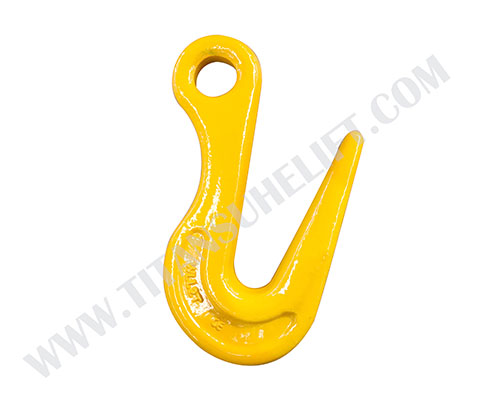

Sorting hooks are manufactured for use in sorting and laying out plates, pipes, cylindrical or tube shapes and other items that allow the full depth of the hook throat to be engaged. They are always used in multiple sling leg applications, in order to balance the load by engaging it on multiple ends.

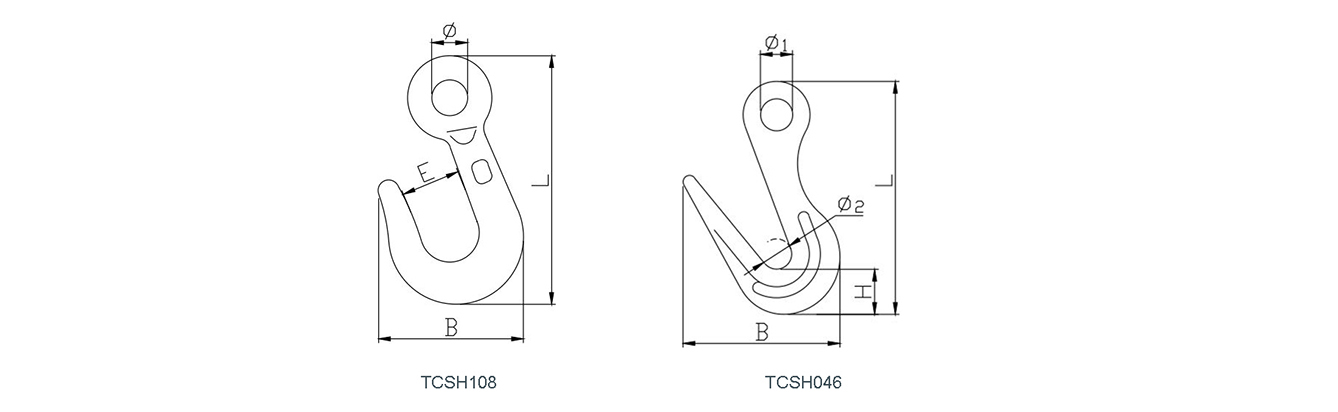

Size | W.L.L (t) | B.L (t) | Dimension (mm) | N.W. (kg/pc) | ||||
Φ1 | B | Φ2 | L | H | ||||
2T | 2 | 8 | 35 | 170 | 33 | 254 | 49 | 3.09 |
Carbon steel forged sorting hook TCSH046
Forged Carbon steel, Electric galvanized or Powder painting, different color is available as per request
Only for lashing or pulling. Never to be used for lifting.
Size | W.L.L | Dimension (mm) | N.W. (kg/pc) | |||
(t) | Φ | B | E | L | ||
50 | 0.4 | 8.5 | 34 | 13 | 56 | 0.04 |
60 | 0.6 | 9.5 | 41 | 16 | 70 | 0.06 |
70 | 1 | 11 | 45.5 | 13 | 80 | 0.095 |
80 | 1.2 | 11 | 54 | 17 | 90 | 0.13 |
90 | 1.8 | 12.5 | 58 | 18 | 102 | 0.196 |
100 | 2.4 | 12.5 | 62 | 19 | 114.5 | 0.3 |
120 | 2.8 | 15.5 | 62 | 20 | 118 | 0.33 |
Titansuhe is dedicated to providing a full range of chain hooks manufacturers, we offer cost-effective and reliable solutions.
