Name: Rotating Steel Wire Rope 35x7
Brand: CHONGQING TITAN SUHE TECH CO., LTD.
Price: 25 USD
Rating: 4.5 (5 reviews)

Rotating Steel Wire Rope 35x7

Differ from the regular wire rope, rotation resistance wire rope has its wires and strands laid in reverse direction. The inner strands and outer strands are also laid in opposite directions. Under this structure, the torsional forces on inner and outer strands/wires will counteract each other to avoid the rope unravel and strength lost.

35Wx7 wire rope is the mostly used industrial grade rotation resistance wire rope because of its extreme flexibility and super high strength.

Quick View of Rotating Steel Wire Rope 35x7

Material: Carbon Steel or stainless steel in 304 or 316
Construction: 34x7, 35x7,36x7
Strand Number: 34, 35, 36
Wire Number of Each Strand: 7
Rope Core: Fiber core and steel core for 34x7 and 36x7, steel core for 35x7
Available Size: 8mm up to 50mm
Available Tensile Strength: 1570N/MM2, 1770N/MM2, 1870N/MM2 and 1960N/MM2
Surface Treatment Options: Electric Galvanization, Hot Dip Galvanization, Self color with lubrication, PVC coating in different color
Lubrication: Dry for galvanized rope and little grease for ungalvanized rope. Other lubrication available by request.
Packing: 1000m/reel as regular, coil packing or other shorter or longer length packing available by request

Data Sheet of Rotating Steel Wire Rope 35x7

Construction: 35Wx7

Nominal Diameter	Approx Weight	Nominal Tensile Strength
Nominal Diameter	Approx Weight	Minimum Breaking Strength (kN)
mm	kg/100m	1570N/mm²	1770N/mm²	1870N/mm²	1960N/mm²
8	29.4	36.1	40.7	43	45.1
10	46	56.5	63.7	67.3	70.6
12	66.2	81.4	91.8	96.9	102
14	90.2	111	125	132	138
16	118	145	163	172	181
18	149	183	206	218	229
20	184	226	255	269	282
22	223	274	308	326	342
24	265	326	367	388	406
26	311	382	431	455	477
28	361	443	500	528	553
30	414	509	573	606	635
32	471	579	652	689	723
34	532	653	737	778	816
36	596	732	826	872	914
38	664	816	920	972	1020
40	736	904	1020	1080	1130
42	811	997	1120	1190	1240
44	891	1090	1230	1300	1370
46	973	1196	1348	1424	1493
48	1060	1302	1468	1551	1625
50	1150	1410	1590	1680	1760

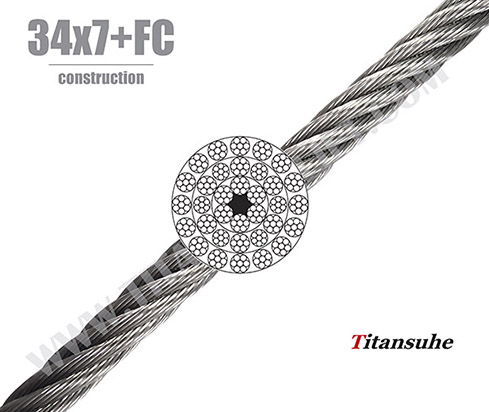

Construction: 34x7+FC, 34x7+IWS, 36x7+FC, 36x7+IWS

Nominal Diameter	Approx Weight	Nominal Tensile Strength
Nominal Diameter	Approx Weight	Minimum Breaking Strength (kN)
mm	kg/100m	1570N/mm²	1770N/mm²	1870N/mm²	1960N/mm²
8	24.96	32	36.1	38.1	39.9
10	39	50	56.3	59.5	62.4
12	56.16	72	81.1	85.7	89.6
14	76.44	98	111	117	123
16	99.84	128	144	153	160
18	126	162	182	193	202
20	156	200	225	238	250
24	225	288	325	343	360
28	306	392	442	467	489
30	351	450	507	536	561
36	506	648	730	771	808
42	688	881	993	1049	1100
48	900	1151	1297	1370	1437

Titansuhe offers custom wire rope attachment for wide range of lifting tools and material handling equipment which can be used either for lifting systems or to rigging a lashing system.

Rotating Steel Wire Rope 35x7

Quick View of Rotating Steel Wire Rope 35x7

Data Sheet of Rotating Steel Wire Rope 35x7

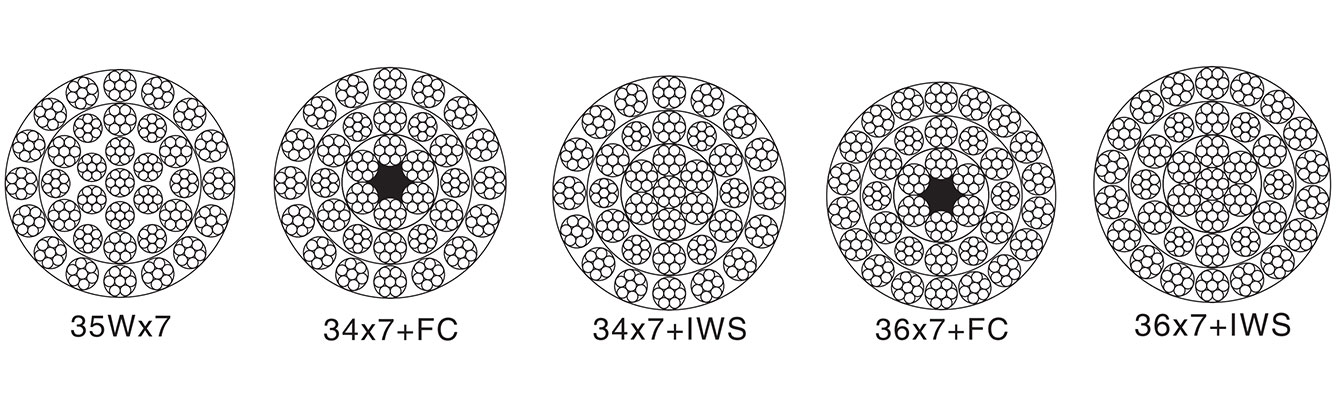

Drawing of Rotating Steel Wire Rope 35x7
