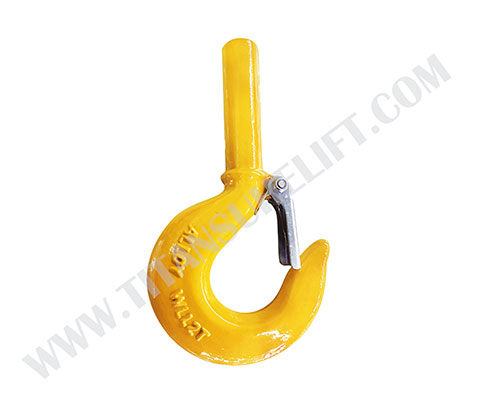

Shank hook, is also named straight rod hook. It is a kind of lifting hook that be most used in lifting machinery. It is often suspended on the steel wire rope of the hoisting mechanism with the help of pulley blocks and other components. Because the shank is easy be impacted during operation, it will required very good quality material. Titansuhe’s shank hook is made of high-quality carbon steel with super toughness.

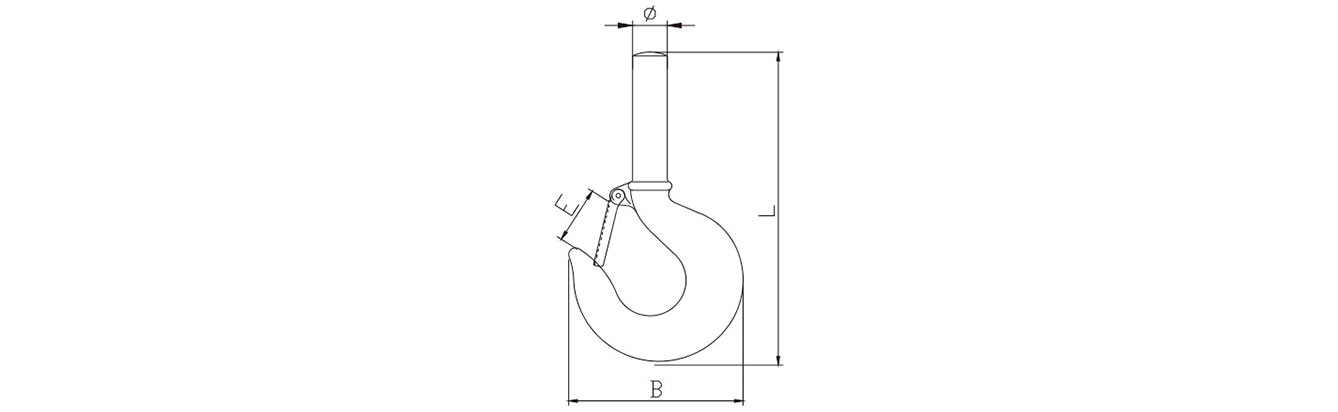

Carbon | Alloy | Dimension (mm) | N.W. (kg/pc) | |||
WLL(t) | WLL(t) | B | E | Φ | L | |
0.75 | 1 | 73 | 25 | 15 | 127 | 0.23 |
1 | 1.5 | 80.3 | 25.5 | 16.7 | 147 | 0.34 |
1.5 | 2 | 92 | 30.4 | 18.4 | 165 | 0.45 |
2 | 3 | 105 | 32 | 22.4 | 178 | 0.84 |
3 | 5 | 126 | 38.5 | 29.5 | 217 | 1.72 |
5 | 7 | 167 | 47 | 35.8 | 263 | 3.29 |
7.5 | 11 | 192 | 61 | 46 | 323 | 6.1 |
10 | 25 | 214.8 | 66 | 50.8 | 342 | 8.2 |
15 | 22 | 262.5 | 89.5 | 65 | 426 | 16 |
Titansuhe have chain hooks manufacturers bulk wholesale at competitive prices, which improve construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.
