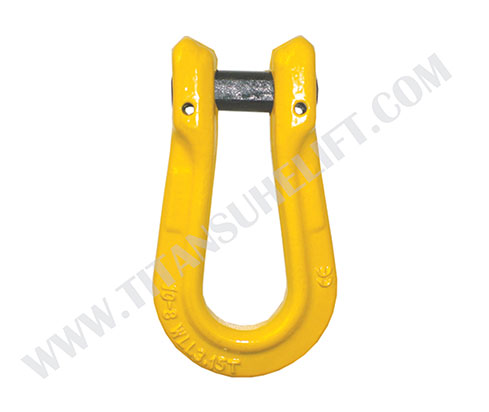

Comparing with regular omega link, long shape omega links provide a larger inside space which enable an easy hook in of different sizes hooks or chains when you want to make a choke lifting. TITAN SUHE provide both standard omega links and different shape omega links with single pin head or clevis head that offers a quick assemble and disassemble of the choke point or hook point.

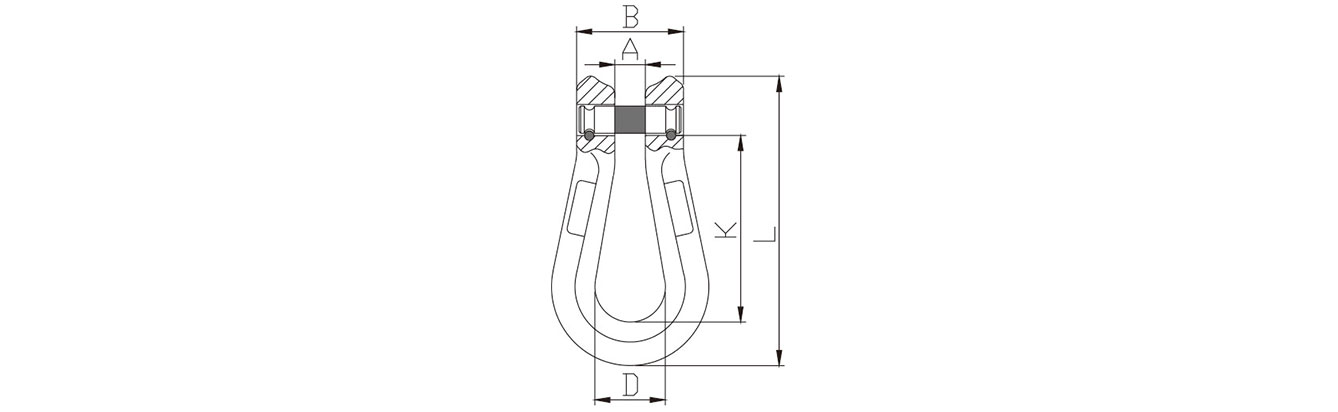

Size | W.L.L (t) | B.L (t) | Dimension (mm) | N.W. (kg/pc) | ||||
A | B | D | K | L | ||||
6-8 | 1.12 | 4.48 | 8 | 28 | 20 | 47.5 | 75 | 0.12 |
7/8-8 | 2 | 8 | 10.5 | 32.5 | 25 | 59 | 92 | 0.17 |
10-8 | 3.15 | 12.6 | 13 | 45.5 | 30 | 78.5 | 123 | 0.43 |
13-8 | 5.3 | 21.2 | 15 | 57.5 | 46 | 94 | 154 | 1 |
As a manufacturing group and professional supplier of lifting chain assembly, Titansuhe has committed to the development of lifting products, material handling, and rigging equipment for more than 15 years.
