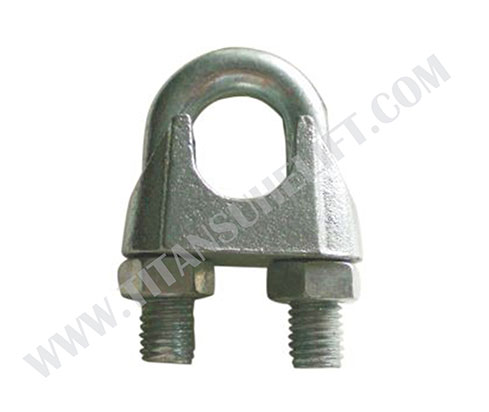

U.S. Type malleable wire rope clips is a commercial grade light duty clamps to use with steel wire rope and make a loop end. Generally, two or more wire rope clips should we applied on one wire rope to make a tight clamp and avoid unexpected loose.

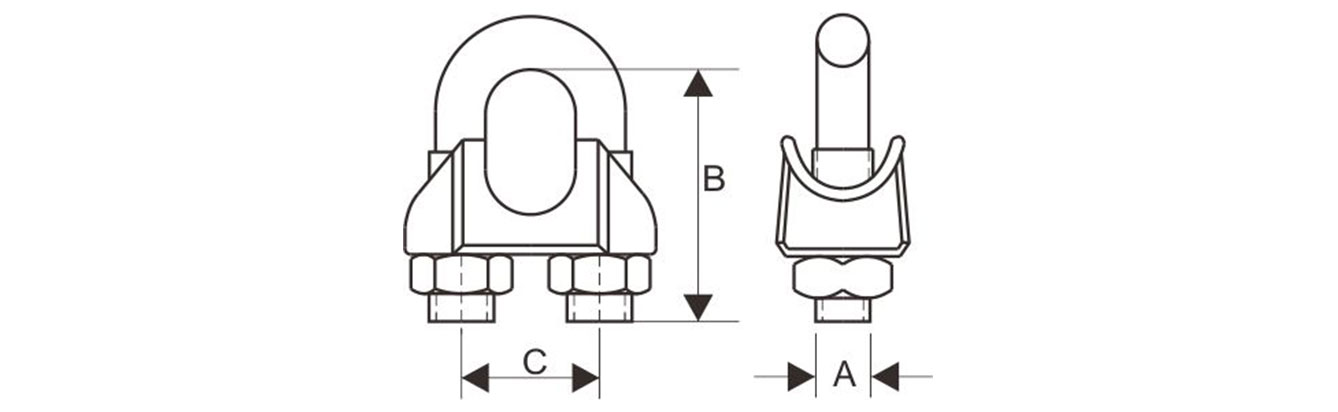

Size | Dimension(mm) | Weight | ||
(inch) | A | B | C | (kg/pc) |
1/8 | M5 | 20 | 11 | 0.02 |
3/16 | M6 | 24 | 14 | 0.03 |
1/4 | M8 | 31 | 17 | 0.05 |
5/16 | M8 | 34 | 18 | 0.06 |
3/8 | M10 | 41 | 22 | 0.1 |
1/2 | M12 | 53 | 27 | 0.11 |
5/8 | M14 | 59 | 33 | 0.25 |
3/4 | M14 | 68 | 34 | 0.37 |
7/8 | M16 | 78 | 41 | 0.53 |
1 | M16 | 87 | 45 | 0.68 |
Titansuhe is dedicated to providing a full range of wire rope sling parts, we offer cost-effective and reliable solutions.
