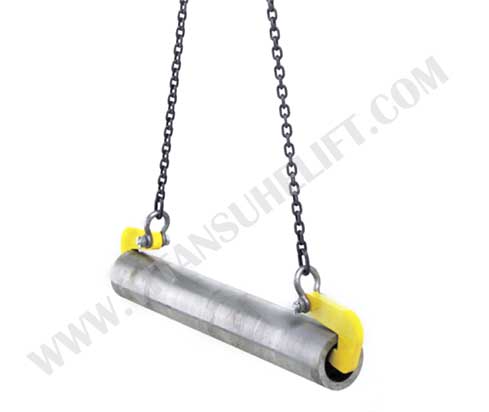

Featured with polyurethane protection on the contact surface, TITANSUHE's lifting clamps suppliers THP series Pipe Lifting Clamp is the ideal solution to lift and transport steel or concrete pipes. The thick polyurethane plate can well protect the pipe surface from damage. Ranged from 1500kg up to 16000kgs, TPH Pipe Lifting Clamp can handle most industry pipes easily.

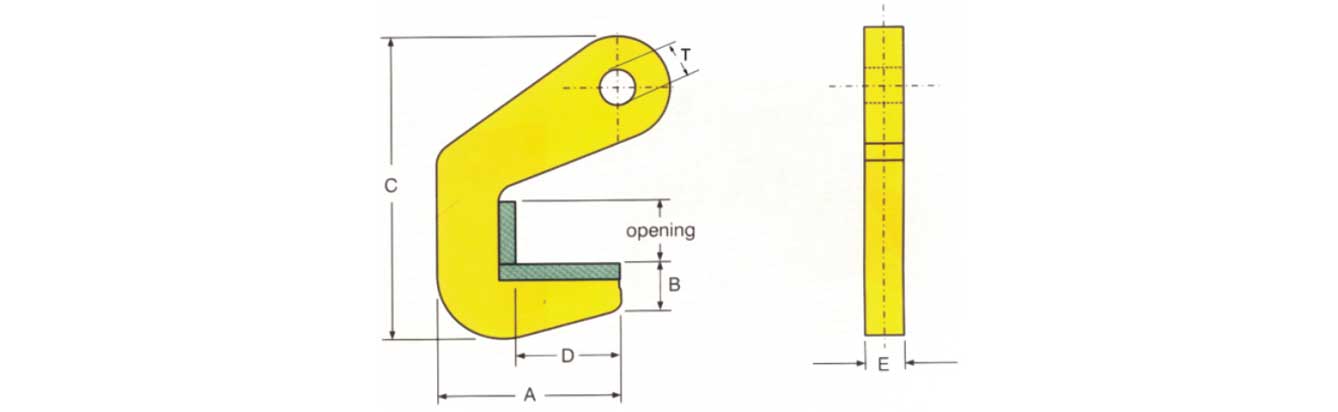

Model | Capacity (kg/pair) | Opening Size (R=mm) | Dimension (mm) | Net Weight (kg) | Shackle （G2130） | |||||
A | B | C | D | E | F | |||||
THP1.5 | 1500 | 40 | 120 | 32 | 195 | 75 | 36 | 25 | 2.2 | 7/8"(6.5T) |
THP3.0 | 3000 | 40 | 120 | 32 | 195 | 75 | 40 | 25 | 2.5 | 1"(8.5T) |
THP4.0 | 4000 | 50 | 120 | 32 | 205 | 75 | 40 | 29 | 3.0 | 1"(8.5T) |
THP6.0 | 6000 | 50 | 120 | 32 | 205 | 75 | 44 | 29 | 3.3 | 1-1/8"(9.5T) |
THP-8.0 | 8000 | 70 | 120 | 32 | 255 | 75 | 44 | 29 | 4.5 | 1-1/8"(9.5T) |
THP-16.0 | 16000 | 70 | 145 | 32 | 300 | 75 | 52 | 40 | 11 | 1-1/2"(17T) |
As a manufacturing group and professional supplier of lifting clamp tool, Titansuhe has committed to the development of lifting products, material handling, and rigging equipment for more than 15 years.
