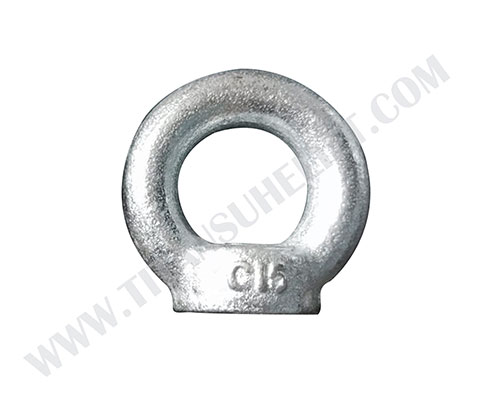

DIN582 Eye Nut
DIN582 Lifting eyenut is used to screw on the existing bolt built-in or weld-on the heavy equipment to make a temporary removable lifting point.
Quick View of DIN582 Eye Nut
Size: from 6mm up to 64mm, larger sizes available upon request.
Material: C15E Zinc plated steel
Data Sheet of DIN582 Eye Nut

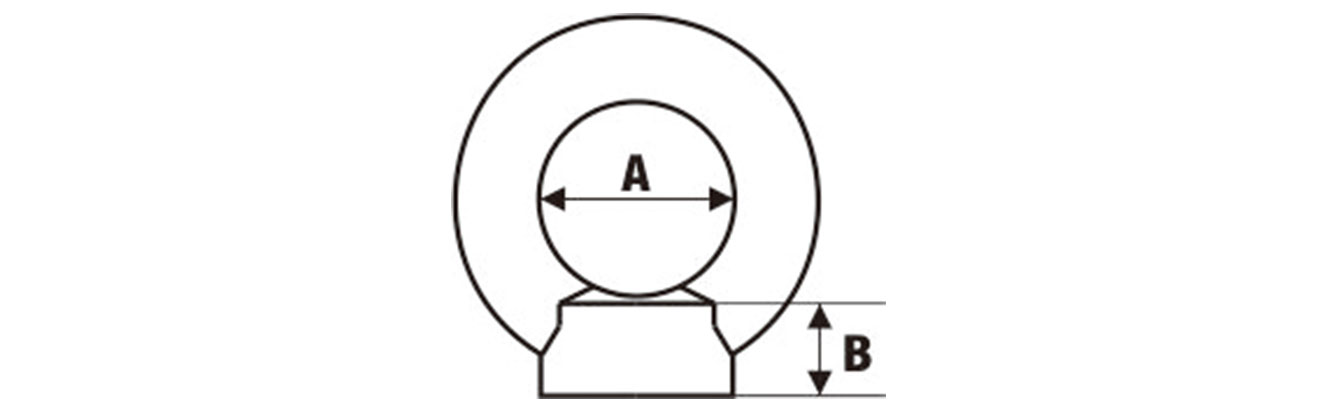

Size | WLL | Dimension(mm) | Weight | |
(mm) | (t) | A | B | (kg) |
M6 | 0.07 | 20 | 8.5 | 0.05 |
M8 | 0.14 | 20 | 8.5 | 0.05 |
M10 | 0.23 | 25 | 10 | 0.09 |
M12 | 0.34 | 30 | 11 | 0.16 |
M14 | 0.49 | 35 | 13 | 0.24 |
M16 | 0.7 | 35 | 13 | 0.24 |
M20 | 1.2 | 40 | 16 | 0.36 |
M22 | 1.5 | 45 | 18 | 0.58 |
M24 | 1.8 | 50 | 20 | 0.72 |
M27 | 2.5 | 50 | 20 | 0.7 |
M30 | 3.6 | 60 | 25 | 1.32 |
M33 | 4.3 | 60 | 25 | 1.3 |
M36 | 5.1 | 70 | 30 | 2.08 |
M39 | 5.1 | 70 | 30 | 2.02 |
M42 | 7 | 80 | 35 | 3.11 |
M45 | 8 | 80 | 35 | 3.04 |
M48 | 8.6 | 90 | 40 | 5.02 |
M52 | 9.9 | 90 | 40 | 4.95 |
M56 | 11.5 | 100 | 45 | 6.69 |
M64 | 16 | 110 | 50 | 6.69 |
