Data Sheet of Grade 8 Chain Connector

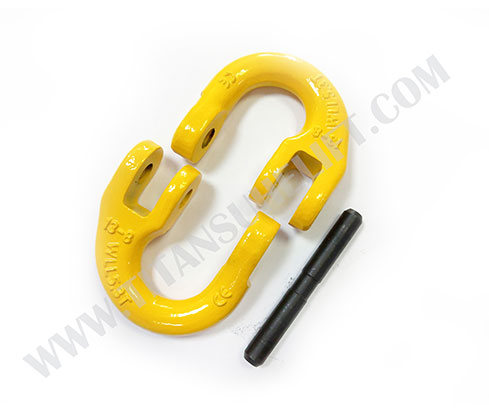

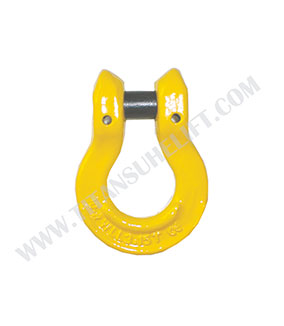

European type chain connector TCSH074
Size | W.L.L (t) | B.L (t) | Dimension (mm) | N.W.(kg/pc) |

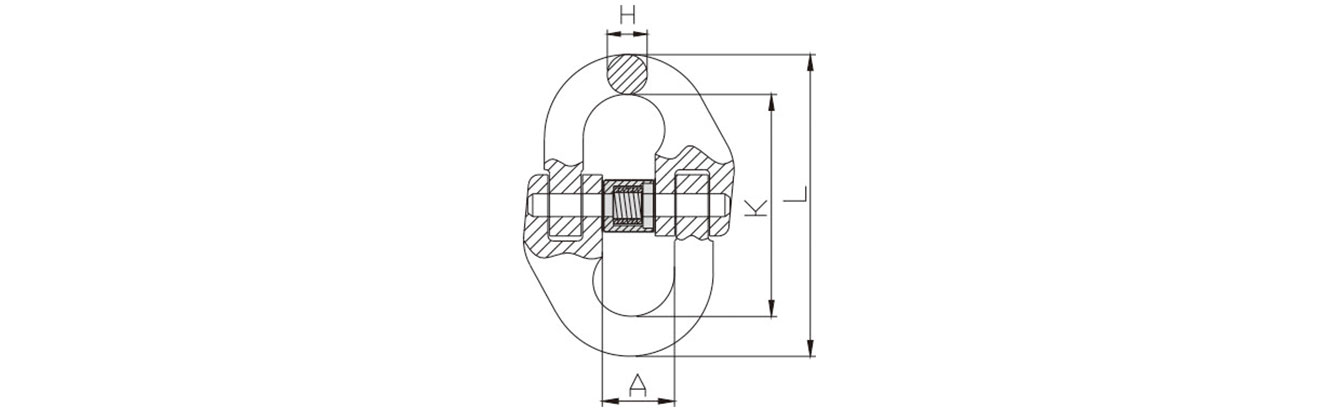

A | L | K | H |
6-8mm | 1.12 | 4.48 | 15 | 58 | 42 | 7 | 0.08 |
7-8mm | 1.5 | 6 | 19 | 71.8 | 54.8 | 8.5 | 0.145 |
8-8mm | 2 | 8 | 18 | 79.5 | 62.5 | 8.5 | 0.146 |
10-8mm | 2 | 8 | 18 | 79.5 | 60.5 | 8.5 | 0.16 |
13-8mm | 3.15 | 12.6 | 25 | 93 | 68 | 10.8 | 0.3 |
16-8mm | 5.3 | 21.2 | 29 | 117 | 87 | 15 | 0.7 |
18-8mm | 8 | 32 | 34.5 | 148 | 108.4 | 19.8 | 1.1 |
20-8mm | 10 | 40 | 38 | 154 | 112 | 21 | 1.84 |
22-8mm | 12.5 | 50 | 41 | 169.5 | 121.5 | 24 | 1.8 |
26-8mm | 15 | 60 | 48 | 193.5 | 141.5 | 26 | 3.2 |
28-8mm | 21.2 | 84.8 | 57.5 | 220 | 158 | 30 | 4.5 |
32-8mm | 31.5 | 126 | 67 | 281 | 205 | 37 | 9 |

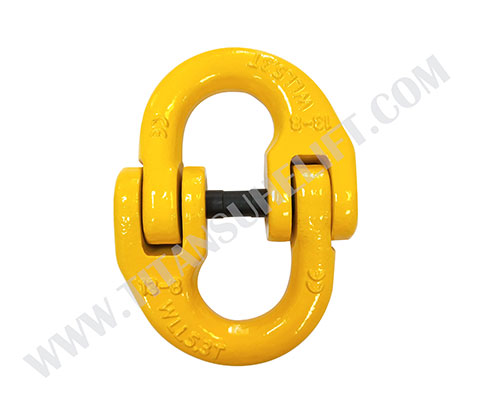

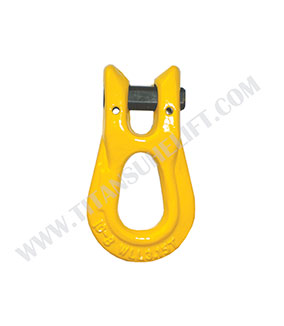

US type chain connector TCSH075
Size | W.L.L (lbs) | B.L (lbs) | Dimension (mm) | N.W |
A | L | K | H | kg/pc |
1/4" | 3250 | 13000 | 19.5 | 69 | 55 | 7 | 0.24 |
5/16" | 4500 | 18000 | 18 | 79.5 | 62.5 | 8.5 | 0.32 |
3/8" | 6600 | 26400 | 27 | 91.5 | 68.5 | 11.5 | 0.58 |
1/2" | 11250 | 45000 | 35 | 111 | 81 | 15 | 1.2 |
5/8" | 16500 | 66000 | 42 | 137.5 | 95.5 | 21 | 2.42 |
3/4" | 23000 | 92000 | 43 | 171 | 126 | 22.5 | 3.89 |
7/8" | 28750 | 115000 | 48 | 190.5 | 141.5 | 24.5 | 6.08 |

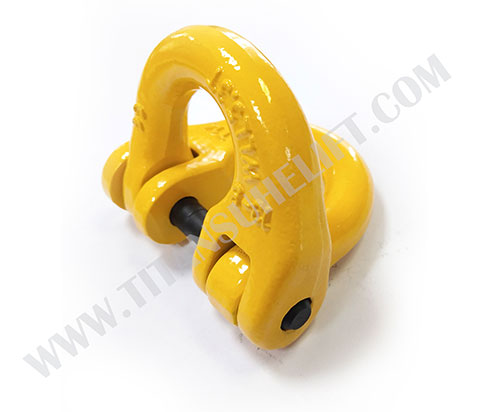

US type chain connecting link TCSH076
Size | W.L.L (lbs) | B.L (lbs) | Dimension (mm) | N.W. (kg/pc) |
A | L | K | H |
1/4" | 3500 | 14000 | 16.5 | 67 | 51 | 8 | 0.286 |
5/16" | 4500 | 18000 | 17 | 78.5 | 58.5 | 10 | 0.32 |
3/8" | 7100 | 28400 | 22 | 87.6 | 63.6 | 12 | 0.73 |
1/2" | 12000 | 48000 | 28.5 | 115.5 | 85.5 | 15 | 1.67 |
5/8" | 18100 | 72400 | 33 | 143 | 106 | 18.5 | 2.86 |
3/4" | 28300 | 113200 | 41 | 162 | 116 | 23 | 5 |
7/8" | 34200 | 136800 | 50.5 | 188.5 | 137 | 26 | 7.5 |
1" | 47700 | 190800 | 57 | 214.5 | 153 | 31 | 11.03 |
1-1/4" | 72300 | 289200 | 65 | 265 | 189 | 38 | 20.38 |
