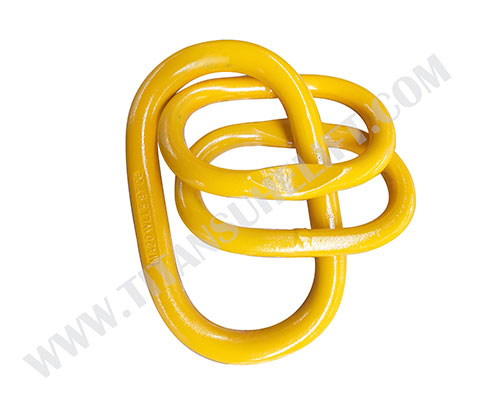

This welding master link assembly can be used with both steel wire rope and lifting chains to make 3-legs or 4-legs wire rope sling and chain slings. The sub links can come with flat press that can be matched with some small opening link such as omega link and so on.

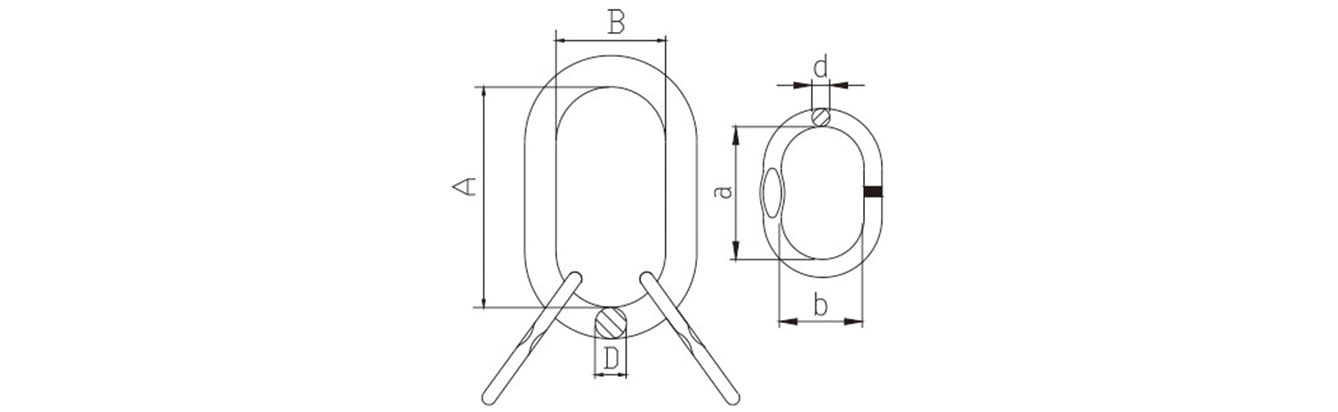

Size | W.L.L (t) | B.L (t) | Dimension (mm) | N.W. (kg/pc) | |||||
A | B | D | a | b | d | ||||
MA16 | 3.8 | 15.2 | 120 | 70 | 16 | 95 | 51 | 13 | 1.19 |
MA20 | 5.8 | 23.2 | 170 | 90 | 20 | 120 | 70 | 16 | 2.41 |
MA22 | 7.6 | 30.4 | 170 | 90 | 22 | 150 | 80 | 20 | 3.77 |
MA25 | 10 | 40 | 190 | 100 | 25 | 150 | 80 | 20 | 4.45 |
MA28 | 12.7 | 50.8 | 210 | 110 | 26 | 170 | 90 | 22 | 6.12 |
MA32 | 15.2 | 60.8 | 270 | 140 | 32 | 190 | 100 | 25 | 9.47 |
MA38 | 25 | 100 | 270 | 140 | 38 | 270 | 140 | 32 | 17.4 |
MA45 | 34 | 136 | 320 | 170 | 45 | 270 | 140 | 38 | 26.76 |
Titansuhe is dedicated to providing a full range of chain rigging accessories, we offer cost-effective and reliable solutions.
