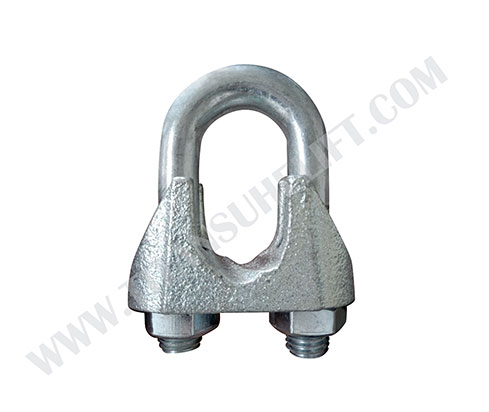

DIN741 wire rope clip is DIN specification clips that made by malleable steel for light duty applications. Zinc plated surface has a good corrosion resist, can be used in some moisture environments. With very competitive prices, this malleable wire rope clamps is one of our best selling products. It is also called wire rope clips and u bolt clamps.

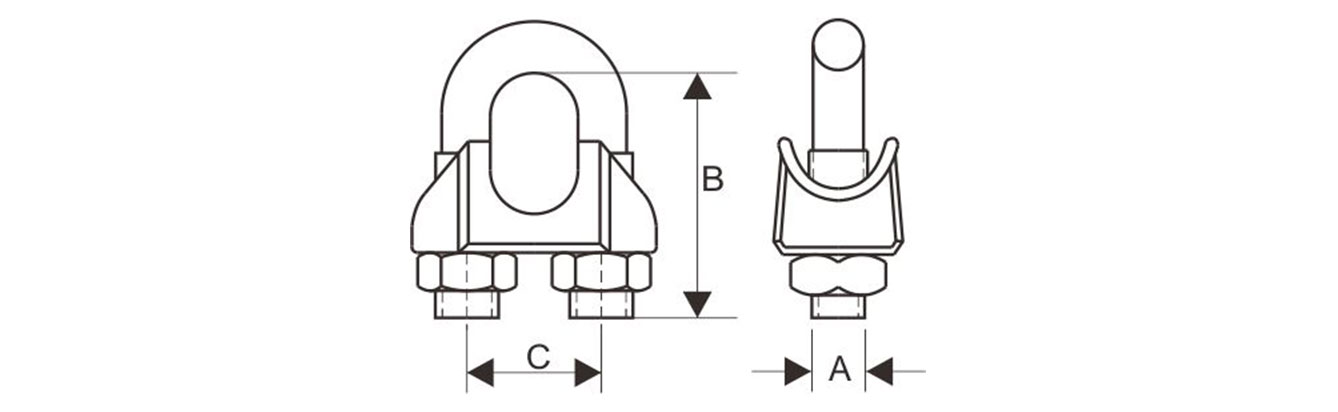

Size | Dimension(mm) | Weight | ||
(mm) | A | B | C | (kg/pc) |
3 | M4 | 16 | 9 | 0.01 |
5 | M5 | 19 | 11 | 0.02 |
6.5 | M5 | 23 | 13 | 0.02 |
8 | M6 | 28 | 16 | 0.04 |
10 | M8 | 35 | 19 | 0.07 |
11 | M8 | 37 | 20 | 0.07 |
13 | M10 | 46 | 24 | 0.13 |
14 | M10 | 48 | 25 | 0.14 |
16 | M12 | 52 | 29 | 0.21 |
19 | M12 | 64 | 32 | 0.28 |
22 | M14 | 72 | 37 | 0.4 |
26 | M14 | 82 | 41 | 0.44 |
30 | M16 | 95 | 48 | 0.66 |
34 | M16 | 105 | 52 | 0.85 |
40 | M16 | 125 | 58 | 1.04 |
45 | M18 | 147 | 63 | 1.35 |
50 | M20 | 152 | 72 | 1.4 |
Titansuhe have wire rope sling components bulk wholesale at competitive prices, which provide more secure, reliable, durable, and efficient lifting tools and material handling equipment.
