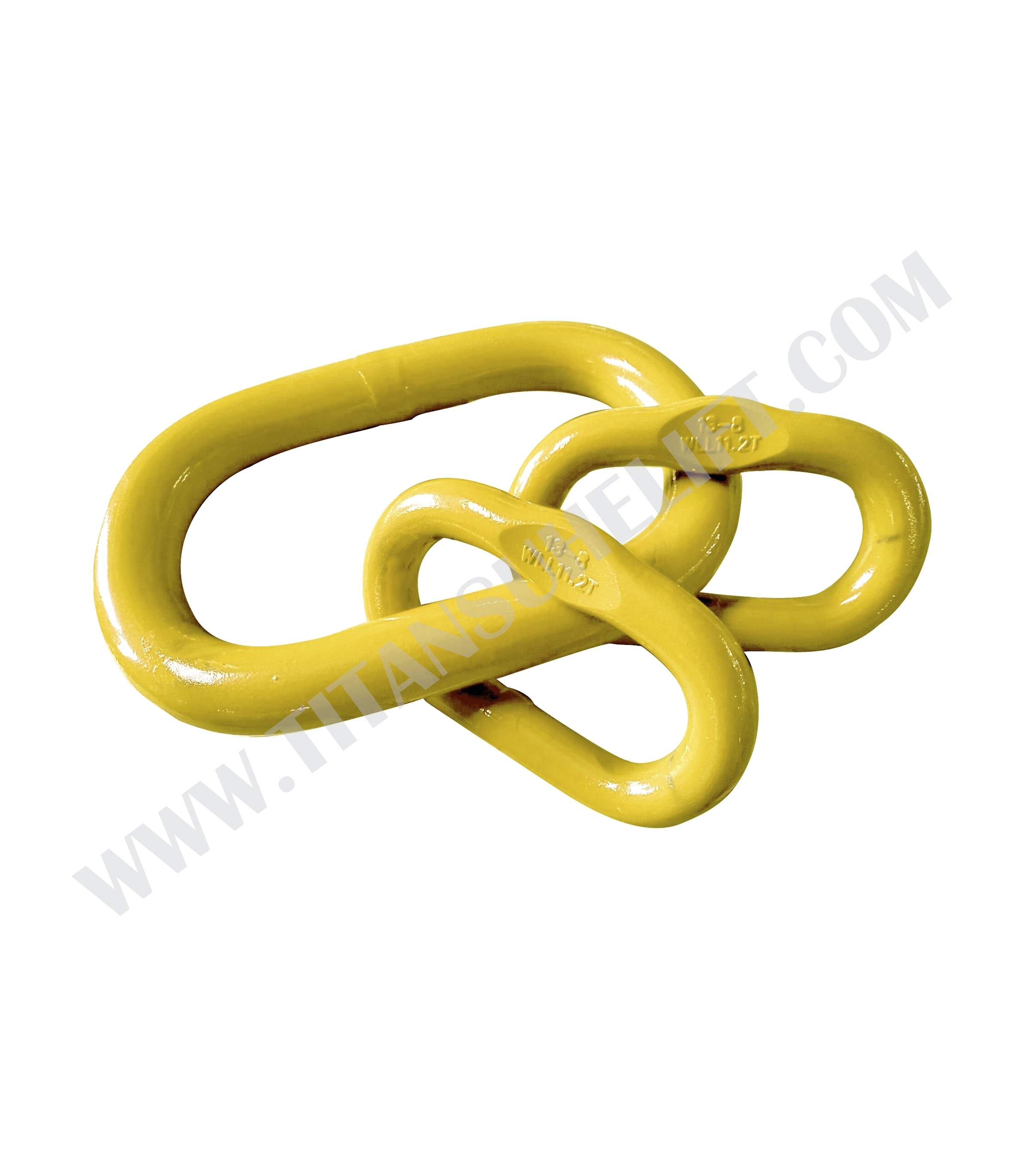

Master control link is a basic component to make 1 leg and 2 leg chain slings or wire rope slings. TITAN SUHE provide a wide range of master control links with different dimensions to fit your chain sling choice. The engineered flat is better to use with coupler links for easy and fast connect.

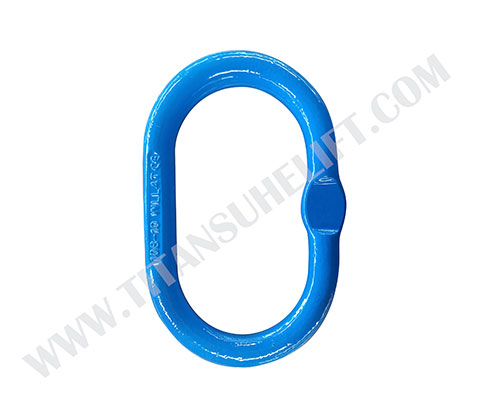

Grade 100 master link with flat TCSH1011

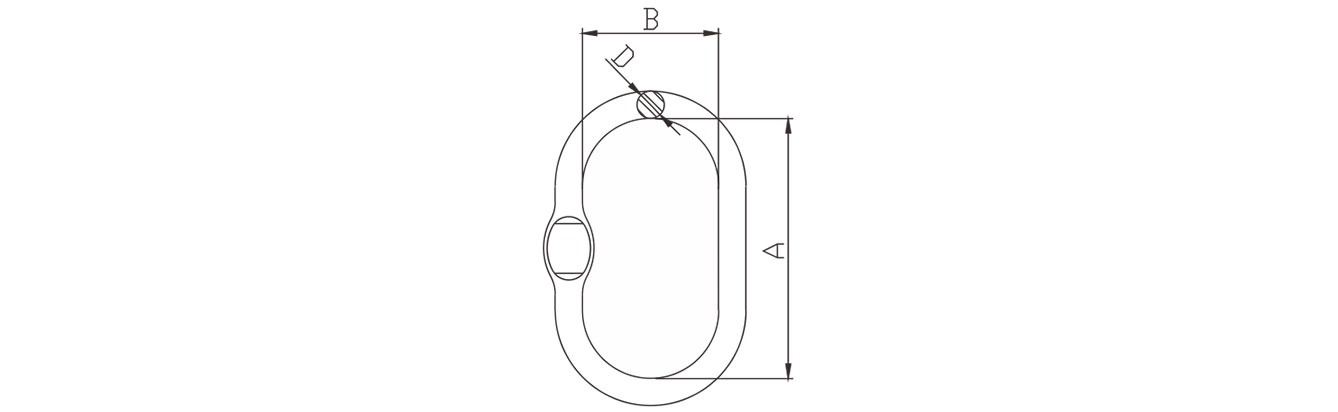

Size | W.L.L. | B.L | Dimension(mm) | Net Weight | ||
(t) | (t) | A | B | D | (kg/pc) | |
10mm | 1.4 | 5.6 | 80 | 50 | 10 | 0.14 |
13mm | 2.3 | 9.2 | 110 | 60 | 13 | 0.34 |
16mm | 3.5 | 14 | 110 | 60 | 16 | 0.53 |
18mm | 5 | 20 | 135 | 75 | 18 | 0.83 |
22mm | 7.6 | 30.4 | 160 | 90 | 23 | 1.6 |
26mm | 10 | 40 | 180 | 100 | 27 | 2.46 |
32mm | 14 | 56 | 200 | 110 | 33 | 4.14 |
36mm | 25.1 | 100.4 | 260 | 140 | 36 | 6.22 |
45mm | 30.8 | 123.2 | 340 | 180 | 45 | 12.85 |
50mm | 40 | 160 | 350 | 190 | 50 | 16.55 |
56mm | 60 | 240 | 400 | 200 | 60 | 27.01 |
72mm | 81.5 | 326 | 460 | 250 | 70 | 45 |

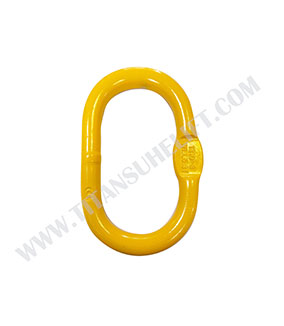

Grade 100 Forged Master Link with Flat TCSH1013
Size | W.L.L | B.L | Dimension(mm) | Net Weight | ||
(t) | (t) | A | B | D | (kg/pc) | |
8/6-10 | 2.5 | 10 | 120 | 70 | 14 | 0.4 |
10/8-10 | 4 | 16 | 140 | 80 | 17 | 0.7 |
13/10-10 | 7.5 | 30 | 160 | 95 | 22 | 1.5 |
16/13-10 | 10 | 40 | 190 | 110 | 25 | 2.2 |
20/16-10 | 17 | 68 | 240 | 140 | 34 | 5.1 |
22/20-10 | 25 | 100 | 250 | 150 | 38 | 7.2 |
Grade 100 Forged Large size Master Link with Flat TCSH1014
This master links provide larger inside length and width.
Size | W.L.L. | B.L | Dimension(mm) | Net Weight | ||
(t) | (t) | A | B | D | (kg/pc) | |
10/8-10 | 4 | 16 | 340 | 180 | 25 | 3.7 |
13/10-10 | 6.5 | 26 | 340 | 180 | 28 | 4.7 |
16/13-10 | 10 | 40 | 340 | 180 | 34 | 7 |
19/16-10 | 14.4 | 57.6 | 340 | 180 | 38 | 8.9 |
Titansuhe have chain block components bulk wholesale at competitive prices, which improve construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.
