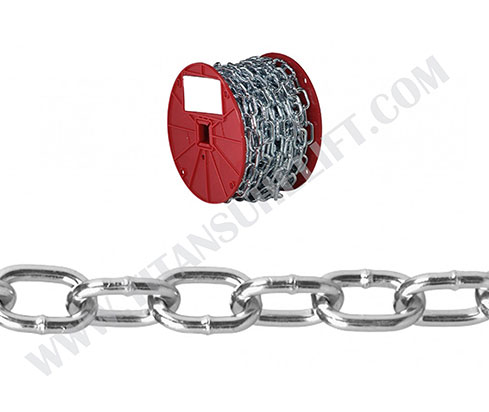

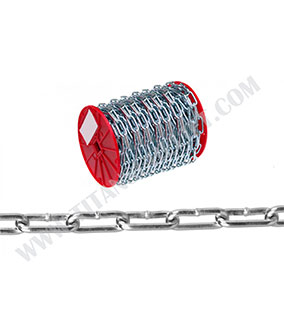

Ordinary chains can be used for gym ropes, chandeliers, flower baskets, hang tags, traction, etc.
The packing methods are plastic barrel, plastic or wooden wheels etc. Different sizes can be packed in different lengths according to requirements.
Steel chains varied in kinds of specifications but also have sufficient materials for batch demand. This ordinary chains are recommend to be matched with shackles, connecting buckles, cargo hooks and so on.
Size(D) | Inside Length(L) | Outside Width（W） | Approx. weight | ||
Bright | H.D.G. | ||||
in. | mm | mm | mm | kg/m | kg/m |
1/8 | 3.2 | 20 | 12 | 0.177 | 0.18 |
5/32 | 4 | 23 | 15 | 0.285 | 0.295 |
3/16 | 4.7 | 25 | 18 | 0.4 | 0.41 |
7/32 | 5.5 | 26 | 19 | 0.558 | 0.574 |
1/4 | 6.35 | 26 | 23 | 0.801 | 0.82 |
5/16 | 7.94 | 32 | 29 | 1.247 | 1.28 |
3/8 | 9.5 | 35 | 35 | 1.821 | 1.87 |
7/16 | 11.11 | 38 | 38 | 2.526 | 2.592 |
1/2 | 12.7 | 50 | 45.5 | 3.182 | 3.281 |
5/8 | 15.8 | 60 | 56.7 | 4.987 | 5.118 |
3/4 | 19 | 76 | 69 | 7.087 | 7.316 |
7/8 | 22.2 | 90 | 80 | 9.613 | 9.908 |
1 | 25.4 | 105 | 95 | 12.631 | 12.992 |
