Master link assembly is the most important parts to make 3 leg and 4 leg chain slings or wire rope slings. The sub links can come with round steel or pressed with flat for better use with coupler links Engineered flat on both sub links are special designed for easy rigging of the connecting links that do not have enough inside width. TITIAN SUHE provide master link assembly both with large size sub links and with small size sub links for your choice.

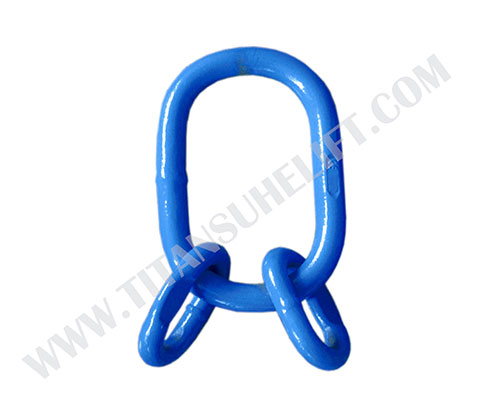

Grade 100 master link assembly with small size sub links TCSH1012

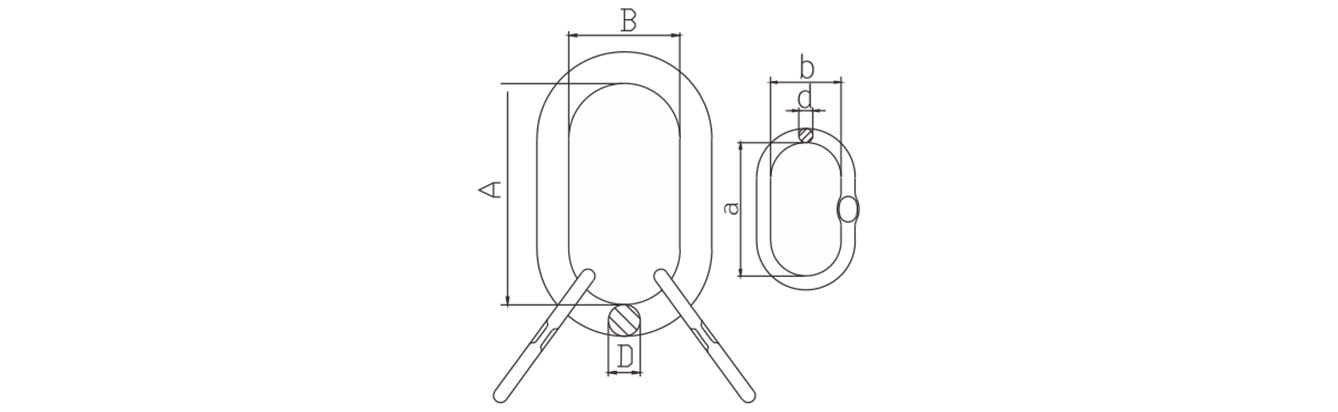

Size | W.L.L. | B.L | Dimension(mm) | Net Weight | |||||
(t) | (t) | A | B | D | a | b | d | (kg/jpc) | |
6-10 | 3.5 | 14 | 150 | 90 | 19 | 120 | 70 | 14 | 1.8 |
8-10 | 5 | 20 | 160 | 95 | 22 | 140 | 80 | 17 | 3 |
10-10 | 11.5 | 46 | 200 | 120 | 30 | 160 | 95 | 22 | 6.5 |
13-10 | 17 | 68 | 250 | 150 | 40 | 20 | 120 | 30 | 15 |
16-10 | 28 | 112 | 300 | 200 | 50 | 200 | 120 | 32 | 23 |

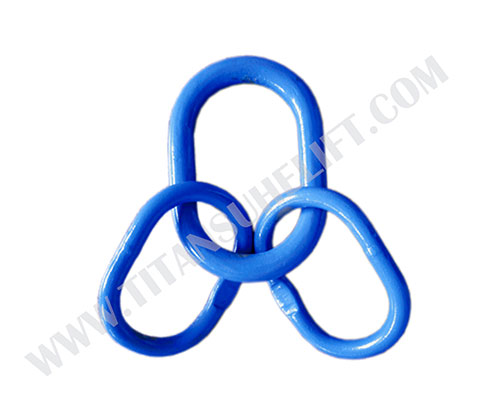

Grade 100 Master link assembly with large size sub links TCSH1015
Size | W.L.L. | B.L | Dimension(mm) | Net Weight | |||||
(t) | (t) | A | B | D | a | b | d | (kg/pc) | |
6-10 | 3 | 12 | 135 | 75 | 19 | 54 | 25 | 13 | 1.3 |
8-10 | 5.3 | 21.2 | 160 | 90 | 23 | 70 | 34 | 16.5 | 2.33 |
10-10 | 8 | 32 | 180 | 100 | 27 | 85 | 40 | 19 | 3.7 |
13-10 | 14 | 56 | 200 | 110 | 33 | 115 | 50 | 23 | 6.5 |
16-10 | 21.2 | 84.8 | 260 | 140 | 36 | 140 | 65 | 27 | 10.1 |
Titansuhe have chain sling components bulk wholesale at competitive prices, which provide more secure, reliable, durable, and efficient lifting tools and material handling equipment.
