Foundry hooks are designed with a wide and deep throat to fit trunnions and handles on molds or castings used in foundry work. TITAN SUHE makes grade 80 eye foundry hooks for industrial purposes. Attached this grade 80 hooks for lifting chains and hooks and make l leg or multi-leg chain slings that especially apply in foundry industries.

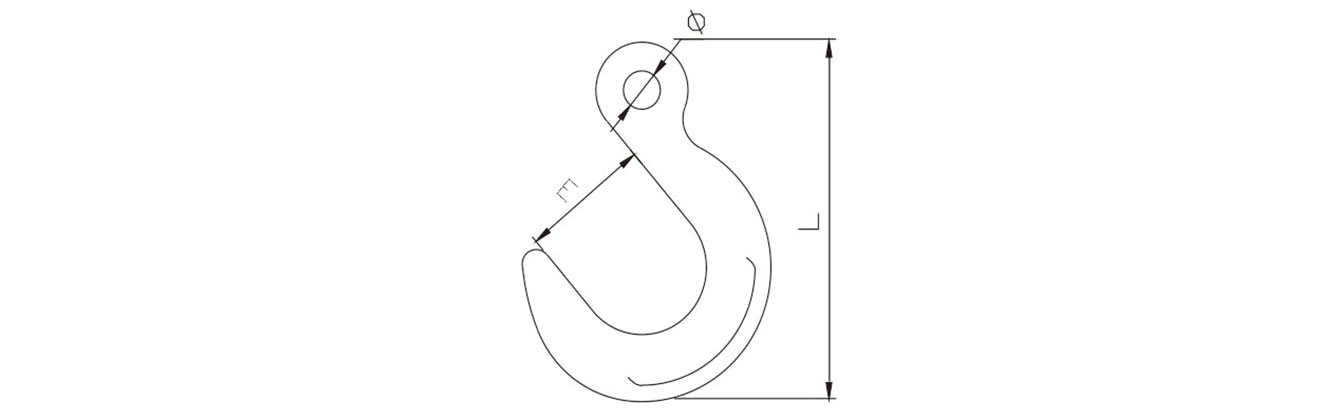

Size | W.L.L (t) | B.L (t) | Dimension (mm) | N.W. (kg/pc) | ||
E | Φ | L | ||||
6-8 | 1.6 | 6.4 | 63.5 | 18 | 163 | 1.09 |
8-8 | 2 | 8 | 63.5 | 18 | 163 | 1.09 |
10-8 | 3.2 | 12.8 | 76 | 22 | 200 | 2.03 |
13-8 | 5.4 | 21.6 | 89 | 27 | 238 | 3.22 |
16-8 | 8.2 | 32.8 | 102 | 32 | 278 | 5.26 |
20-8 | 12.8 | 51.2 | 114.5 | 38 | 325 | 9.1 |
22-8 | 15.5 | 62 | 127.5 | 45 | 361 | 11.3 |
26-8 | 21.5 | 86.4 | 140 | 66.5 | 402 | 16.8 |
32-8 | 32.8 | 131.2 | 153.5 | 81.5 | 461 | 26.6 |
For one-stop system service with chain hooks manufacturers, Titansuhe assure you that all of our products and solutions are cost-effective and reliable.
