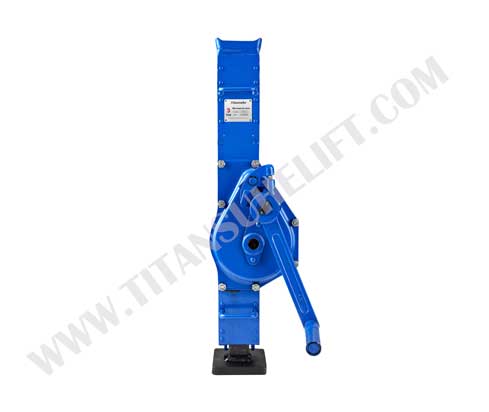

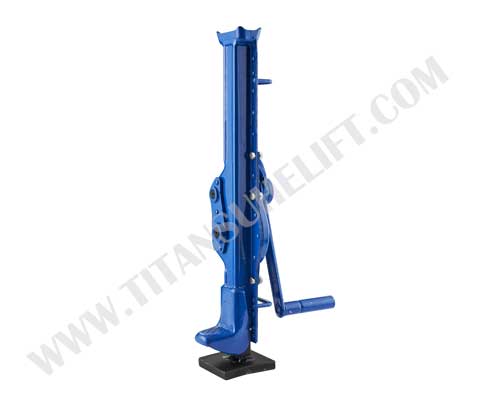

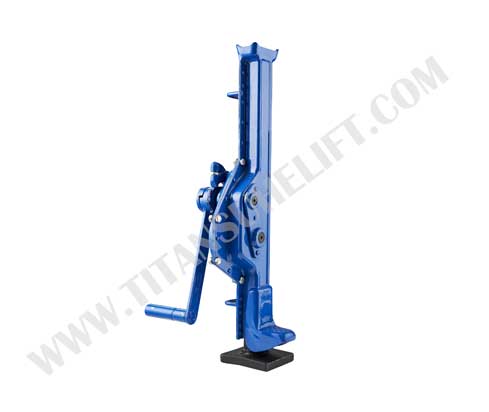

Mechanical Jack from TITANSUHE is a crank-operated lifting Jack that can lift huge loads with a small effort. Constructed with a super quality ratchet mechanism, our mechanical jack can provide reliable and durable load support. Two jacking points design gives more choice of the lifting height. This jack is widely used in garages or factories for car and equipment repair and maintenance.
Model No.: TCSH-A
Available Jacking Force: 1.5ton up to 25ton
Color: Standard in blue, other colors available.
Packing: Kraft box for 5t and below, wooden box for 5t above.

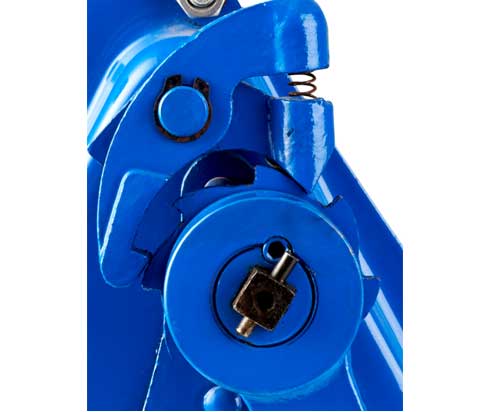

Reliable and Durable Ratchet Mechanism-Heat treated with high strength and super wear resistance

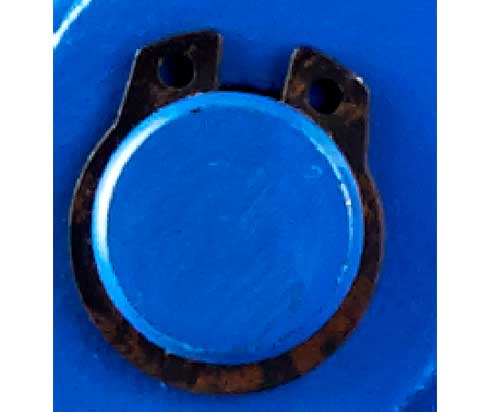

Snap Ring Lock-Can be taken off with special tool, no worry of ratchet pawl loose or drop

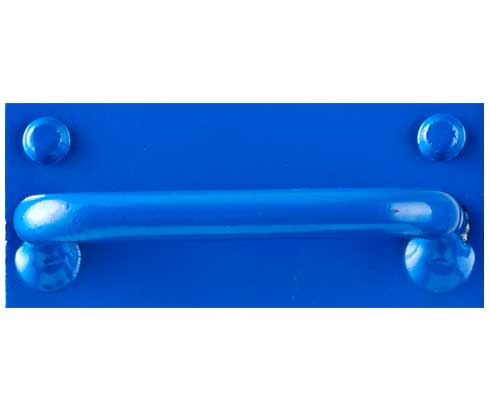

Handle Constructed at Both Side-Easy Carry

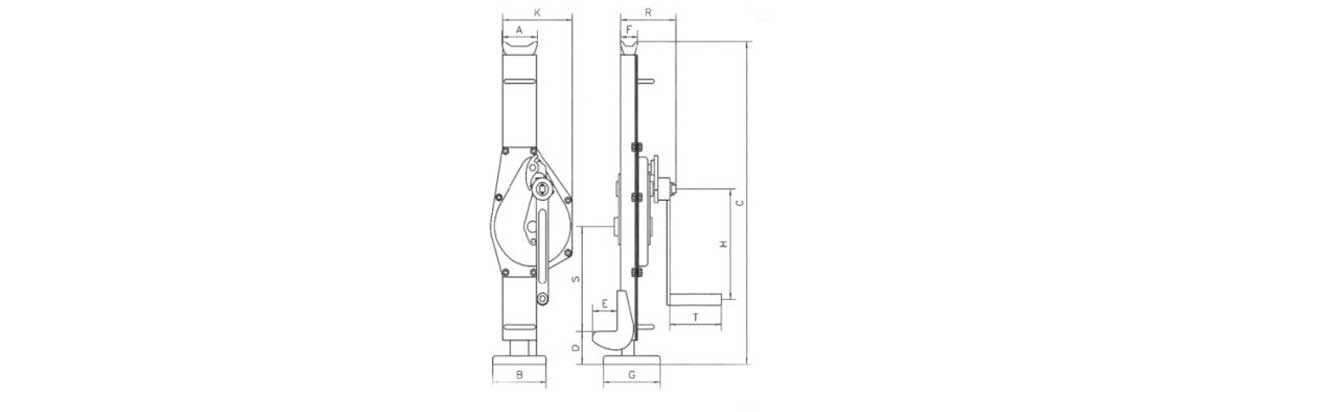

Model | Capacity | Test Load | Crank Effort to lift Rated Load | N.W | Q'ty/Ctn | Meas. |
(t) | (KN) | (N) | (kg) | (pcs) | (cm) | |
TCSH-A1.5 | 1.5 | 22 | 140 | 14 | 1 | 62x18x19 |
TCSH-A3.0 | 3 | 44.1 | 196 | 20 | 1 | 75x19x22 |
TCSH-A5.0 | 5 | 73.5 | 235 | 28 | 1 | 75x21x25 |
TCSH-A10 | 10 | 147 | 431 | 46 | 1 | 82x27x31 |
TCSH-16 | 16 | 196 | 580 | 65 | 1 | 85x29x35 |
TCSH-A20 | 20 | 220 | 650 | 72 | 1 | 90x38x30 |
TCSH-A25 | 25 | 275 | 750 | 91 | 1 | 102x42x36 |
