lift elevator machine manufacturer/supplier China

Q: What information do you need to send us quotation for an elevator?

Before quote, we need to know elevator’s capacity (passenger numbers and weight), stop numbers (building floor number), shaft size (width and depth), with machine or without, etc. For different type of the elevators, the information need for quote will be different. When receiving your inquiry, our sales team will contact you to require related information.

Q: How did you pack the elevator? Are they OK for sea shipment?

To suit container loading, elevators are all packed unassembled. We pack all the elevator parts by solid wooden case with clear indication of the parts name and quantity.

Q: What support can you provide for elevator installation and maintenance?

We have detail instruction manual for installation and maintenance for each of our elevators. We also provide online instruction by video. If neccessary, we can send engineers to your country (customers bear all charges) to guide the installation and then train the workers about maintenance in the future. But in most situations, local workers can finish this work with our guidebooks and technology support, or you can ask the local professional elevator engineers to do this job, This can save much money for our customer.

Q: If I order 6pcs freight elevator, what is your lead time?

We can make delivery within 45 days after receiving all the signed documents and advance payment.

Q: Do you accept payment by LC?

Yes, we accept irrevocable LC at sight. But we prefer to work with bank remittance if the elevator quantity is not too much.

Elevator

Elevator, produced by our sister company Schmidt, is the main products for our Group. To create easier mobile space with minimum energy consumption through modernized technology is always our first aim. Absorbing Germany Technology, through years hard work, we successfully developed permanent magnet synchronous and gearless traction machine that features with 40% less energy consumption, low noise and maintenance free.

We provide passenger elevator, freight elevator, medical service elevator, villa lift, dumbwaiter elevator china, escalator and automatic walk. Whereever you need to transfer people or cargos in the building, shopping center, restaurant etc. , you can find appropriated products from our wide range. Our advanced equipment and up-to-date technology always enhance user safety, maximize efficiency, make optimal use of available space and deliver superior ride comfort.

Types of Elevator

Are Elevators Safe?

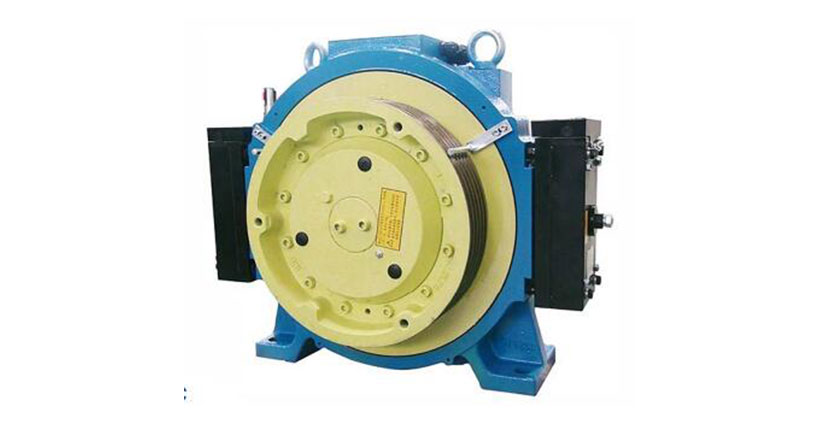

As an indispensable mobile equipment in urban space, the safety consideration is always the priority when select an elevator. We provide all our elevators with safety features such as VVVF Frequency inverter control system, Intellectual remote monitoring system, Permanent magnet synchronous and gearless traction machine, Door safety protection device, etc. All the main elevator spare parts including but not limited with governor, safety gear, buffer, wire ropes have been inspected and type tested to meet international standard. Choose Schmidt, you get peace in mind.

How Do Elevators Work？

The elevator is mainly composed of traction rope, car phase, counterweight, guide wheel, motor, reducer, brake, etc. The counterweight and car are connected by the traction rope and wound on the guide wheel and traction wheel respectively. The motor drives the traction wheel to rotate through the speed change of reducer. The lifting movement of counterweight and car is realized through the friction between traction wheel and traction rope, so as to achieve the purpose of transportation.

The guide shoe on the car realizes the reciprocating lifting movement of the car according to the fixed guide rail installed on the shaft wall, so as to avoid the swing or deflection of the car in the lifting movement.

The brake releases the brake when the motor works to make the elevator run. When the elevator loses power, the brake stops the lifting of the car, and maintains a static state on the designated floor to ensure the normal entry and exit of personnel and goods. As a box car carrying passengers, counterweight needs to be used to balance the load and reduce the motor power. The compensation device of the elevator ensures the stability of the motor load and the accurate parking of the lift car by compensating the weight and tension changes in the movement of the traction rope.

Frequently Asked Questions of Elevators



What is Schdimt Elevator's Advantages?





We have our own R&D Center, imported Germany technology, and fully automated production lines that can provide high quality products with very competitive prices. About 20 years experience in elevator field can give you most professional advice when you have any questions.



What information do you need to send us quotation for an elevator?





How did you pack the elevator? Are they OK for sea shipment?





What support can you provide for elevator installation and maintenance?





If I order 6pcs freight elevator, what is your lead time?





Do you accept payment by LC?


