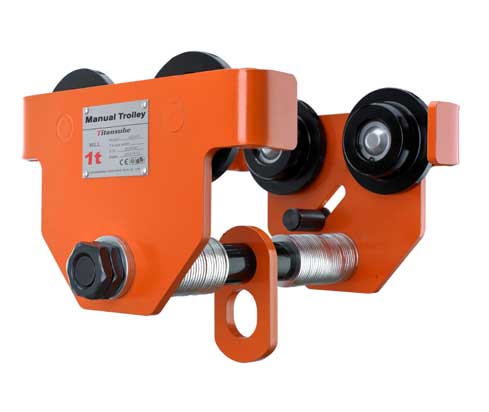

Constructed with an Anti-drop device and anti-crash side plate, TITANSUHE's GCT/GCL619 series hoist trolley is innovatively designed for high safety, reliable operation, and durable service. Range from 0.5ton up to 30ton, this trolley is ideal to use with any type of chain hoist for horizontal travel.
Model No.: GCT 619 for push beam trolley and GCL619 for geared beam trolley
Capacity: 3ton, available capacity from 500kg up to 30ton
Standard Lift: 3m for geared beam trolley, longer chain length available by request
Hand Chain Size: 5x25mm
Flange width: 64-203mm
Color: Powder painting in orange, other colors are available upon request.
Packing: Kraft box
Lightweight robust construction
Fits most I, S, and W-Beams
Durable baked enamel paint protection
Precision ball-bearing trolley wheels
Anti-drop plate

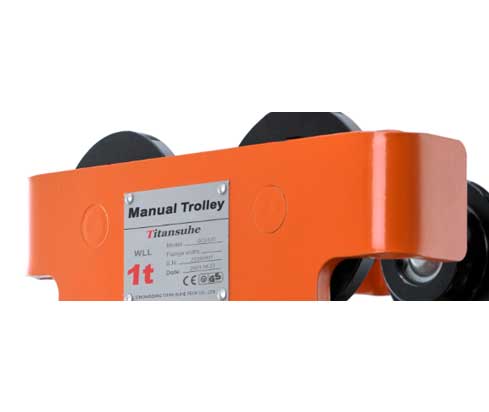

Stainless steel ID tag
Individual test certificate and serial number
Laser Cut Plate and bail gives nice streamline
Drop Forged Tight Wheel with Ball Bearing Inside-Strong and Durable, provide tight but smooth travelling

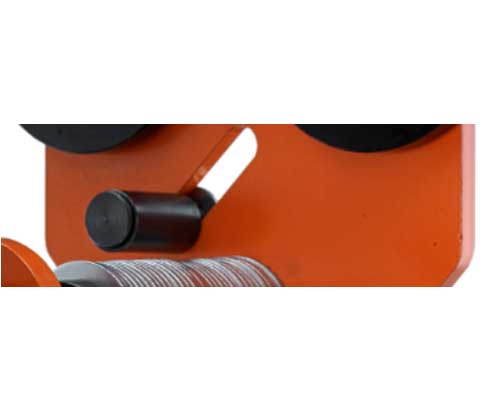

Special Anti-Drop Device-Well keep the wheel on track, no worry of wheel climbing or dropping

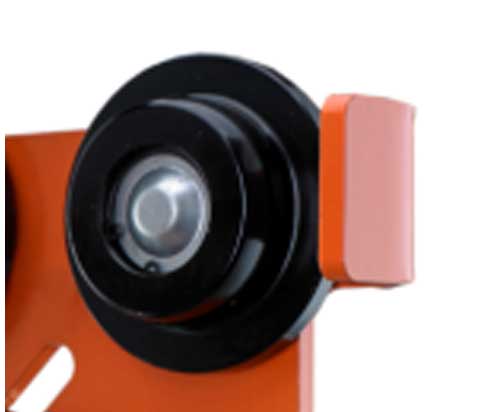

Anti-Crash Plate-Provide strong and durable protect to trolley wheel in case any crash during trolley movement
Nice Streamline-Laser cut plate and bail give a pretty nice shape.
One-piece Structured Side Plate-No collection, no welding, worry-free of break risks.
Forged Trolley Wheel with Ball Bearing-Strong and Durable. Ball Bearing offers tight but smooth movement.
Innovative Anti-Drop Design-Adjustable Device, keep trolley wheel tight on track, no worry trolley wheel climbing or dropping.
Quick Installation-Simply adds or reduces washer numbers to suit different flange widths, easy and quick installation, and maintenance.
Minimum Pulling Effort-Precision machined geared wheel enables smooth travel with minimum pulling effort.

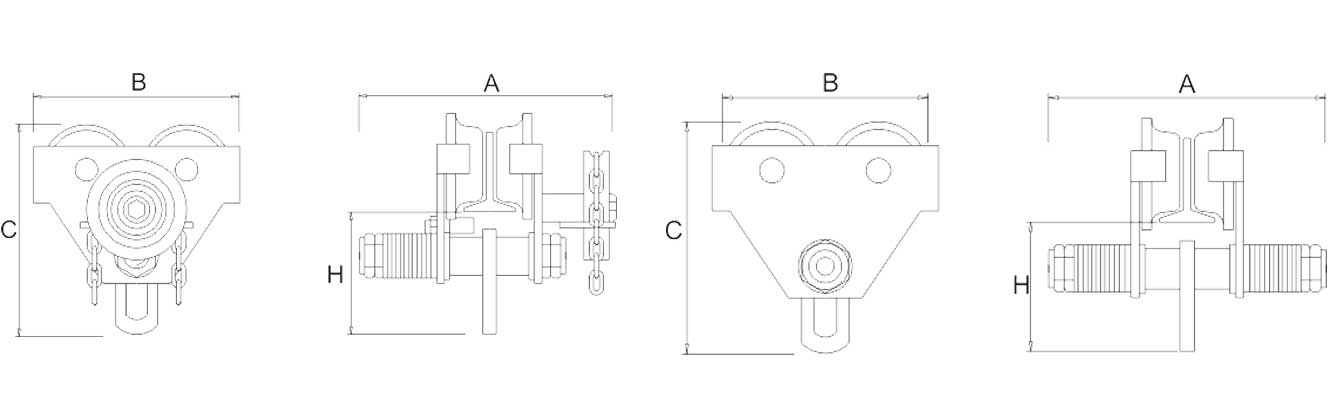

Capacity | Flange width | Min. turning radius | N.W. (KGS) | A | B | C | H |
0.5 | 64-203 | 0.9 | 6 | 208 | 212 | 190 | 108 |
1.0 | 64-203 | 1.0 | 9.5 | 242 | 239 | 214 | 120 |
2.0 | 87-203 | 1.1 | 14.6 | 280 | 270 | 248 | 145 |
3.0 | 101-203 | 1.3 | 24 | 300 | 319 | 323 | 200 |
5.0 | 114-2030 | 1.4 | 36 | 316 | 346 | 357 | 210 |
10 | 125-203 | 1.7 | 83 | 343 | 472 | 400 | 230 |
20 | 150-203 | 5.0 | 235 | 475 | 642 | 622 | 315 |
Capacity | Flange width | Min. turning radius | N.W. (KGS) | A | B | C | H |
0.5 | 68-126 | 0.9 | 10 | 280 | 212 | 190 | 108 |
1.0 | 80-146 | 1.0 | 13.5 | 280 | 239 | 214 | 120 |
2.0 | 80-168 | 1.1 | 19 | 310 | 270 | 248 | 145 |
3.0 | 88-168 | 1.3 | 29 | 365 | 319 | 323 | 200 |
5.0 | 100-170 | 1.4 | 40 | 400 | 346 | 357 | 210 |
10 | 122-203 | 1.7 | 90 | 400 | 472 | 400 | 230 |
20 | 122-203 | 5.0 | 215 | 475 | 798 | 575 | 300 |
