Boat Anchor Accessories

Boat anchor accessories from TITANSUHE include various anchors, anchor chains, and chain accessories such as kenter shackle, end shackle, swivel, etc.

Anchor is an essential part of the ship and is one of the most widely used items in the marine industry. We provide AC-14 high holding power boat anchor parts, hall anchor and plough anchor. Chose the right boat anchors and anchor fittings according to the length and weight of your ship. Weather conditions must be also taken into consideration when choosing anchor marine parts.

Anchor chain is a chain connecting the marine anchor and the hull, which is used to transfer and buffer the external force on the ship and also produces a part of the friction. As a rigging China supplier, We provide both stud link anchor chains and studless anchor chains. Stud link anchor chain has extra strength while studless anchor chain is more convenience to be connecting for long pieces and attach to the boat anchor parts point.

Chain accessories-Including kenter shackle, end shackle, swivel shackle, end link, etc. All these marine anchor accessories are used together with anchor chains to make connections with the ship, boat anchor parts point or boat anchor chain itself.

Types of Anchor Boat Parts for Sale

Marine Anchor

Anchor is the main part of the anchoring equipment, its an iron ship-stopping device, which is connected to the ship with an iron chain. It can stabilize the hull when throw the anchor on the bottom o...

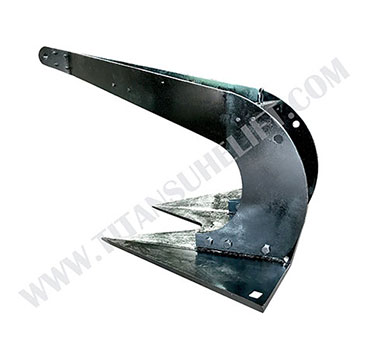

AC-14 Anchor Plough Anchor Hall Anchor

Anchor Chain

Marine stud Link anchor chain is a special chain that connects the anchor and the ship. Due to its own heavy weight, the marine stud Link anchor chain can buffer external forces when yacht or boat moo...

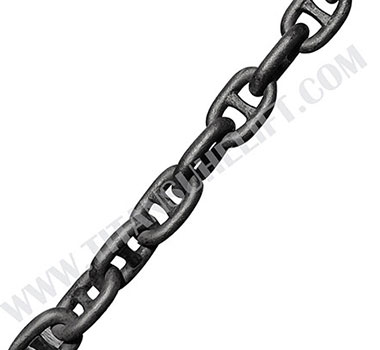

Stud Link Anchor Chain Studless Anchor Chain

Anchor Fittings

Anchor fittings are utilized for connecting two individual chains. Many kinds of anchor accessories such as kenter shackle, end shackles, anchor swivels, and so on come into this purpose. No matter sh...

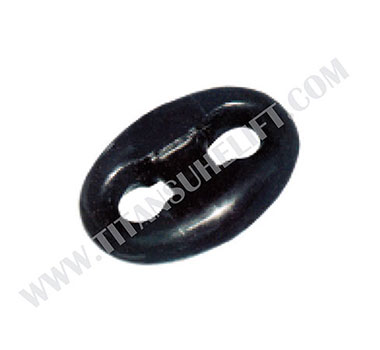

Kenter Shackles End Shackles Anchor Swivel

Mooring Rope

The rope has kinds of good properties such as high tensile strength, impact resistance, abrasion resistance, flexibility, lightness and softness. Its a multi-strand ropes aim to tying ships.If sort mo...

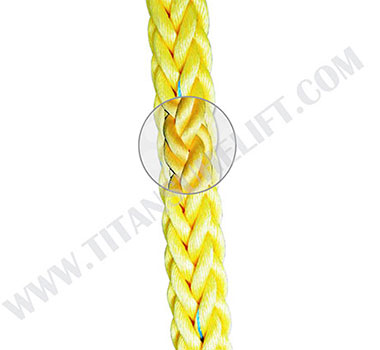

Natural Fiber Rope High Performance Polypropylene Fiber Rope

Boat Anchor Parts Features

Boat anchor parts vary depending on the type and size of the anchor, but here are some common features and components:

Anchor flukes: The flukes are the pointed arms of the anchor that dig into the seabed to provide holding power. Flukes can be pointed or curved, and the number and size of the flukes can vary depending on the anchor type.

Anchor shank: The shank is the long, straight part of the anchor that connects the flukes to the anchor chain or rope. The shank can be made of various materials, such as steel or aluminum, and may be hollow or solid.

Anchor chain or rope: The chain or rope connects the anchor to the boat and provides the necessary length for the anchor to reach the seabed. The chain or rope should be strong enough to withstand the weight of the boat and the forces of wind and waves.

Anchor swivel: The swivel is a component that connects the anchor chain or rope to the shank, allowing it to rotate and prevent twisting of the chain or rope.

Anchor roller: The anchor roller is a fitting on the bow of the boat that guides the anchor chain or rope into the anchor locker or cleat.

Anchor buoy: An anchor buoy can be attached to the anchor chain or rope to make it easier to locate and retrieve the anchor when needed.

Anchor locker or cleat: The anchor locker or cleat is the fitting on the boat where the anchor chain or rope is stored when not in use.

In summary, boat anchor parts include the flukes, shank, chain or rope, swivel, roller, buoy, and locker or cleat. These components work together to provide the necessary holding power and safety for the boat while anchored. It is important to select the appropriate anchor and parts for the boat size and type and to maintain and inspect them regularly for proper functionality.

Boat Anchor Parts Strength Information

PL=Proof Load Strength

BL=Minimum Breaking Strength

Norminal Dia.	Anchor Chain				Mooring Chain
	ABS, BV, CCS, CR, DNV, GL				API		ABS	DNV,ABS	DNV,ABS	ABS/DNV			ABS/DNV
	KR, LR, NK,RINA, RMRS						C/EL/E	C/EL/E/SL,SL	C/EL/E/SL	ABS/DNV			ABS/DNV
										C/EL/E	SL	C/EL/E/SL	C/EL/E	SL	C/EL/E/SL
	Grade2		Grade3		ORQ		RQ3	NVR3/RQ3	NVR3/RQ3	RQ3S/VR3S			RQ4/NVR4
	PL	BL	PL	BL	PL	BL	PL	PL	PL	PL	PL	PL	PL	PL	PL
	C=0.0098	C=0.0137	C=0.0137	C=0.0196	C=0.014	C=0.0211	C=0.0148	C=0.0156	C=0.0223	C=0.018	C=0.0174	C=0.0249	C=0.0216	C=0.0192	C=0.0274
	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN
12.5	66	92	92	132	-	-	-	-	-	-	-	-	-	-	-
14	82	116	116	165	-	-	-	-	-	-	-	-	-	-	-
16	107	150	150	216	-	-	-	-	-	-	-	-	-	-	-
17.5	127	179	179	256	-	-	-	-	-	-	-	-	-	-	-
19	150	211	211	301	-	-	-	-	-	-	-	-	-	-	-
20.5	175	244	244	349	-	-	-	-	-	-	-	-	-	-	-
22	200	280	280	401	-	-	-	-	-	-	-	-	-	-	-
24	237	332	332	476	-	-	-	-	-	-	-	-	-	-	-
26	278	389	389	556	-	-	-	-	-	-	-	-	-	-	-
28	321	449	449	642	-	-	-	-	-	-	-	-	-	-	-
30	368	514	514	735	-	-	-	-	-	-	-	-	-	-	-
32	417	583	583	833	-	-	-	-	-	-	-	-	-	-	-
34	468	655	655	937	668	1007	706	745	1064	859	831	1188	1031	916	1308
36	523	732	732	1050	746	1124	789	832	1189	960	928	1327	1151	1022	1460
38	581	812	812	1160	828	1248	876	923	1319	1065	1029	1473	1278	1135	1621
40	640	896	896	1280	914	1376	967	1019	1456	1176	1136	1626	1411	1253	1789
42	703	981	981	1400	999	1513	1056	1114	1592	1285	1242	1777	1542	1370	1956
44	769	1080	1080	1540	1097	1654	1160	1223	1748	1411	1364	1951	1693	1503	2147
46	837	1170	1170	1680	1194	1800	1263	1331	1902	1535	1484	2124	1843	1636	2337
48	908	1270	1270	1810	1295	1952	1369	1443	2063	1665	1610	2304	2037	1775	2535
50	981	1370	1370	1960	1400	2110	1480	1561	2230	1800	1743	2490	2160	1918	2740
52	1060	1480	1480	2110	1508	2273	1594	1682	2402	1939	1877	2682	2327	2033	2952
54	1140	1590	1590	2270	1620	2441	1712	1806	2580	2083	2017	2881	2499	2219	3170
56	1220	1710	1710	2430	1735	2615	1834	1935	2764	2231	2160	3086	2677	2378	3396
58	1290	1810	1810	2600	1851	2794	1960	2068	2953	2383	2308	3297	2860	2540	3628
60	1380	1940	1940	2770	1976	2978	2089	2203	3147	2540	2460	3514	3048	2708	3867
62	1470	2060	2060	2940	2101	3166	2221	2343	3347	2701	2616	3737	3242	2879	4112
64	1560	2190	2190	3130	2230	3360	2357	2486	3551	2867	2776	3965	3440	3055	4364
66	1660	2310	2310	3300	2361	3559	2496	2633	3761	3036	2940	4200	3643	3235	4621
68	1750	2450	2450	3500	2496	3762	2639	2784	3976	3209	3108	4440	3851	3420	4885
70	1840	2580	2580	3690	2631	3970	2785	2938	4196	3387	3289	4685	4064	3610	5156
73	1990	2790	2790	3990	2847	4291	3010	3175	4535	3660	3545	5064	4392	3900	5572
76	2150	3010	3010	4300	3066	4621	3242	3419	4884	3942	3818	5454	4731	4206	6001
78	2260	3160	3160	4500	3216	4847	3400	3587	5123	4135	4004	5720	4962	4411	6295
81	2410	3380	3380	4820	3446	5194	3643	3843	5490	4431	4291	6130	5317	4727	6745
84	2580	3610	3610	5160	3683	5550	3893	4107	5866	4735	4585	6550	5682	5051	7208
87	2750	3850	3850	5500	3925	5916	4149	4377	6252	5046	4887	6981	6056	5383	7682
90	2920	4090	4090	5840	4173	6289	4412	4653	6647	5365	5196	7422	6439	5724	8167
92	3040	4260	4260	6080	4242	6544	4590	4842	6916	5582	5405	7722	6699	5955	8497
95	3230	4510	4510	6440	4599	6932	4862	5128	7326	5913	5726	8180	7096	6308	9001
97	3340	4680	4680	6690	4774	7195	5047	5323	7604	6138	5943	8490	7365	3547	9243
100	3530	4940	4940	7060	5040	7596	5328	5620	8028	6480	6275	8964	7776	6912	9864
102	3660	5120	5120	7320	5220	7868	5519	5821	8315	6712	6500	9285	8054	7160	10217
105	3850	5390	5390	7700	5495	8282	5809	6128	8753	7065	6842	9773	8478	7536	10754
107	3980	5570	5570	7960	5681	8561	6005	6334	9048	7304	7072	10103	8764	7791	11118
111	4250	5940	5940	8480	6058	9130	6401	6755	9650	7789	7543	10775	9347	8309	11856
114	4440	6230	6230	8890	6346	9565	6709	7077	10109	8159	7901	11287	9791	8704	12420
117	4650	6510	6510	9300	6639	10005	7018	7402	10574	8535	8265	11807	10242	9105	12993
120	4850	6810	6810	9720	6953	10452	7331	7733	11047	8916	8634	12334	10400	9511	13573
122	5000	7000	7000	9990	7135	10753	7542	7956	11365	9173	8883	12690	11008	9785	13964
124	5140	7200	7200	10280	7336	11057	7755	8175	11688	9433	9134	13048	11319	10062	14358
127	5350	7490	7490	10710	7641	11516	8078	8515	12172	9825	9514	13951	11790	10480	14955
130	5570	7800	7800	11140	7950	11981	8404	8858	12663	10222	9898	14140	12266	10903	15559
132	5720	8000	8000	11420	8157	12294	8623	9090	12994	10488	10157	14509	12586	11187	15965
137	6080	8510	8510	12160	8682	13085	9178	9674	13829	11163	10809	15442	13395	11907	16992
142	6450	9030	9030	12910	9214	13887	9740	10268	14677	11847	11472	16389	14217	12637	18034
147	6840	9560	9560	13660	9753	14670	10310	10869	15536	12540	12144	17348	15049	13377	19089
152	7220	10100	10100	14430	10299	15522	10887	11477	16405	13242	12823	18318	15890	14125	20157
157	7600	10640	10640	15200	11126	16768	11762	12090	17282	13950	13508	19297	16740	14880	21234
162	7990	11180	11180	15980	11405	17189	12057	12708	18166	14663	14199	20284	17596	15641	22320

Weight Information of Boat Anchor Parts

Norminal Dia.	Stud Link Anchor Chain	Regular Link	Enlarge Link	End Link	Kenter Link	Connecting Link	End Shackle	Swivel	A type Swivel Shackle	B type Swival Shackle
mm	kg/27.5m	kg	kg	kg	kg	kg	kg	kg	kg	kg
14	128	0.26	0.39	0.32	0.6	0.67	1.5	1.05	-	-
16	150	0.35	0.49	0.57	0.65	0.95	1.52	1.34	-	-
17.5	197	0.5	0.66	0.67	0.88	1.34	2.05	1.73	-	-
19	236	0.66	0.85	1.06	1.13	1.84	2.41	2.17	-	-
20.5	268	0.8	1.02	1.06	1.36	2.2	3.25	2.2	-	-
22	324	1.04	1.3	1.58	1.64	2.66	3.95	3.5	17.5	7.6
24	370	1.3	1.65	1.84	2.13	3.4	5.12	4.53	17.5	9.9
26	431	1.64	2.03	2.74	2.58	4.5	6.7	5.79	37.6	12.5
28	496	2.04	2.48	3.23	3.3	5.19	8.1	7.25	37.6	15.7
30	563	2.48	3.58	3.74	4.15	6.32	10	9	91	19.4
32	635	0.98	4.45	4.74	5.06	8.24	11.77	10.03	91	32.4
34	712	3.54	5.21	5.54	6.01	9.56	14.2	12.75	107	28
36	800	4.23	5.99	6.95	6.89	11.31	16.55	14.96	107	33.4
38	888	4.96	6.15	7.66	8.4	13.45	19.55	17.44	107	39.4
40	1033	6.04	8.01	8.2	9.63	15.5	22.8	20.25	115	46
42	1084	6.65	9.04	9.92	11	18.1	26	25.4	115	53
44	1197	7.73	10.25	11.42	12.45	20.25	29.71	26.6	139	61
46	1310	8.8	11.54	13.92	14.1	23.33	34.3	30.67	139	70
48	1438	10.06	14.44	15.67	16.7	27.5	38	35	139	79
50	1546	11.28	16.06	17.7	19	31.6	45.2	40.5	264	89
52	1661	12.68	17.85	18.97	20.3	34	50.9	49.5	264	101
54	1791	14.1	19.6	20.84	23.7	38.5	53.8	50.5	270	113
56	1926	15.66	21.69	23.55	26.7	46	63	55	270	126
58	2086	17.83	24	25.95	27.2	46.8	70	64.6	294	140
60	2249	19.9	26	28.48	27.7	51	77.5	71.3	294	155
62	2361	21.66	28.63	30.81	35	59.2	86.3	77.7	294	171
64	2516	23.51	31.13	32.7	38.4	62.7	96.3	83.3	403	188
66	2676	25.98	35	38.4	42.3	75	99.6	88.7	403	206
68	2885	28.6	39.72	39.5	46	76.7	102.6	100	403	225
70	3010	31	43.33	43.8	48.7	90	126.2	107.8	464	246
73	3274	35.2	48.3	49	53	95	138.2	125.6	464	278
76	3548	39.9	53.6	57.1	60.7	107	146	143.8	464	314
78	3737	43	59.9	62.3	65.5	116	164	154	749	340
81	4030	48.6	66	67.4	75	130	190	188	749	380
84	4334	53.5	69	74.4	90	136	212	198	931	424
87	4650	58.9	81.1	84.6	96	160	237	215	931	472
90	4976	66.35	88	91	108	176	245	238	1191	522
92	5199	71.22	97.5	100	114	196	257	252	1191	558
95	5544	78.08	101	109	128	215	300	269	1191	614
97	5780	83.77	107	117	133	222	335	301	-	654
100	6143	89.03	120	127	146	252	353	330	1464	717
102	6398	95.5	130	134	158	267	378	344	1464	761
105	6773	104.2	139	150	160	294	385	387	1466	830
107	7033	111.63	148	160	180	305	420	428	1466	879
111	7569	124.08	161	171	198	325	463	448	1830	980
114	7983	135.31	168	190	204	345	485	460	1830	1062
117	8409	147.53	177	209	225	365	528	475	1830	1147
120	8863	155.49	204	229	250	400	570	547	-	-
122	9143	166.24	218	234	263	425	602	649	1827	-
124	9399	170.9	228	246	290	465	632	680	2022	1199
127	9830	185.47	244	269	312	499	679	729	2336	1297
130	10300	194.34	264	293	333	536	729	784	2636	1427
132	10620	208.24	270	298	350	561	762	820	2960	1662
137	11439	233.45	298	329	392	627	852	912	3309	1883
142	12289	261.47	333	383	436	698	949	1012	3680	2116
147	13170	297.67	377	419	485	774	1053	1124	4088	2537
152	14081	312.91	416	458	537	856	1164	1238	4520	2611
157	15023	349.37	450	499	591	943	1283	1360	4980	2897
162	15995	390.12	496	542	651	1036	1410	1490	5470	3197

Anchor Marine Parts Importance

Anchor marine parts are essential components of any marine vessel as they play a crucial role in ensuring the safety and reliability of the vessel during navigation. Here are some of the reasons why anchor marine parts are important:

Anchoring the vessel: Anchor marine parts are used to anchor the vessel securely in place, providing stability and preventing it from drifting away. This is especially important during adverse weather conditions or when the vessel needs to stay in a particular location.

Maneuvering the vessel: Anchor marine parts such as anchor chains and ropes are also used to maneuver the vessel, allowing it to change direction or position as required.

Safety: Properly functioning anchor marine parts are critical for the safety of the vessel and crew. In emergency situations, such as engine failure or inclement weather, the anchor can provide a stable point to prevent the vessel from drifting into danger.

Compliance with regulations: Many countries have regulations governing the use of anchor marine parts, including requirements for the type, size, and number of anchors needed on a vessel. Ensuring that the vessel has the appropriate anchor marine parts helps to comply with these regulations and ensure the vessel's safety.

Maintenance: Regular maintenance of anchor marine parts is important to ensure their reliability and functionality. This includes inspections, cleaning, lubrication, and replacement of worn or damaged parts.

In summary, anchor marine parts are essential components of any marine vessel, providing stability, maneuverability, and safety during navigation. Proper selection, installation, and maintenance of these parts are critical for the safe and efficient operation of the vessel.
