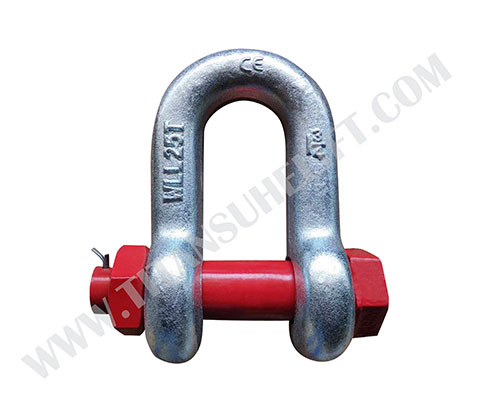

Bolt Type Chain Shackles are designed for overhead lifting purpose. The safety bolt and cotter pin can keep load seated and secured without worrying of accidental unscrewing even the shackles are under rotation, twist or bent.

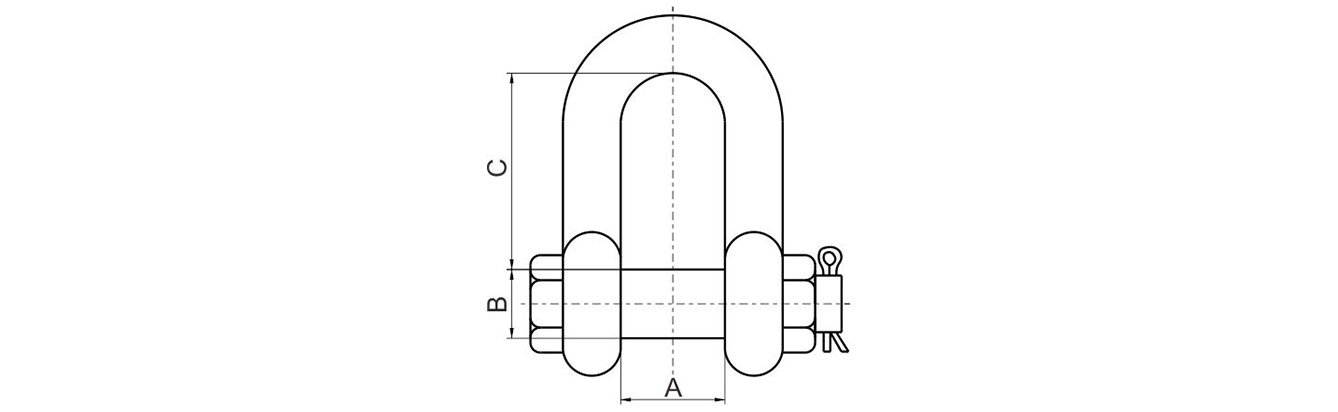

Nominal Size | W.L.L. | Dimension | Weight | |||||
(in) | (t) | A(in) | A(mm) | B(in) | B(mm) | C(in) | C(mm) | (kg/pc) |
1/4 | 1/2 | 0.47 | 11.94 | 0.31 | 7.87 | 0.91 | 23.11 | 0.06 |
5/16 | 3/4 | 0.53 | 13.46 | 0.38 | 9.65 | 1.07 | 27.18 | 0.1 |
3/8 | 1 | 0.66 | 16.76 | 0.44 | 11.18 | 1.28 | 32.51 | 0.15 |
7/16 | 1 1/2 | 0.75 | 19.05 | 0.5 | 12.7 | 1.48 | 37.59 | 0.22 |
1/2 | 2 | 0.81 | 20.57 | 0.63 | 16 | 1.63 | 41.4 | 0.34 |
5/8 | 3 1/4 | 1.06 | 26.92 | 0.75 | 19.05 | 2 | 50.8 | 0.67 |
3/4 | 4 3/4 | 1.25 | 31.75 | 0.88 | 22.35 | 2.38 | 60.45 | 1.17 |
7/8 | 6 1/2 | 1.44 | 36.58 | 1 | 25.4 | 2.81 | 71.37 | 1.75 |
1 | 8 1/2 | 1.69 | 42.93 | 1.13 | 28.7 | 3.19 | 81.03 | 2.52 |
1 1/8 | 9 1/2 | 1.81 | 45.97 | 1.25 | 31.75 | 3.58 | 90.93 | 3.45 |
1 1/4 | 12 | 2.03 | 51.56 | 1.38 | 35.05 | 3.94 | 100.08 | 4.9 |
1 3/8 | 13 1/2 | 2.25 | 57.15 | 1.5 | 38.1 | 4.38 | 111.25 | 6.27 |
1 1/2 | 17 | 2.38 | 60.45 | 1.63 | 41.4 | 4.81 | 122.17 | 8.39 |
1 3/4 | 25 | 2.88 | 73.15 | 2 | 50.8 | 5.75 | 146.05 | 14.24 |
2 | 35 | 3.25 | 82.55 | 2.25 | 57.15 | 6.75 | 171.45 | 21.21 |
2 1/2 | 55 | 4.13 | 104.9 | 2.75 | 69.85 | 8 | 203.2 | 38.56 |
3 | 85 | 5 | 127 | 3.25 | 82.55 | 8.5 | 215.9 | 56.36 |
3 1/2 | 120 | 5.25 | 133.35 | 3.75 | 95.25 | - | 120 | |
4 | 150 | 5.5 | 139.7 | 4.25 | 107.95 | - | 156 | |
As a manufacturing group and professional supplier of wire rope sling components, Titansuhe has committed to the development of lifting products, material handling, and rigging equipment for more than 15 years.
