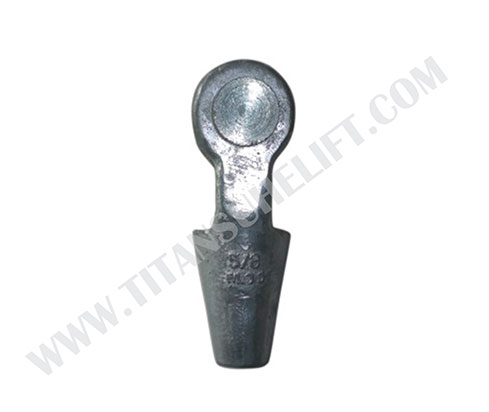

Wire Rope Sockets

Mooring Sockets are used to attach with steel wire rope that used for lifting, anchoring system, anchor cables of oil platforms, towing cables or for fastening cables in construction purposes such as bridges, roof construction etc. Sockets are the strongest steel wire rope end fitting available, and if they are assembled in the proper way they can meet at least the breaking strength of the steel wire rope.

Spelter sockets open, closed and wedge, US416, US417, and US421 are used for towing and construction, lifting, and rigging.

TITAN SUHE provide both US type open and closed wire rope socket as well as JIS type open and closed wire rope socket.

Attention of Wire Rope Sockets

Here are some attenton tips from Titan SUHE, your reliable rigging equipment manufacturers.

Always mount the loaded part of the wire in the centre line of the pin (see figures). Secure the dead end with a wire rope clip. Do not attach the loaded wire to the dead end. The dead end should have a length of 6 times the wire diameter with a minimum of 150 mm. After the first load, inspect that the wire rope and wedge are fully seated. Load may slip if the connection is not properly installed. Inspect the connection regularly.

Data Sheet of Wire Rope Sockets

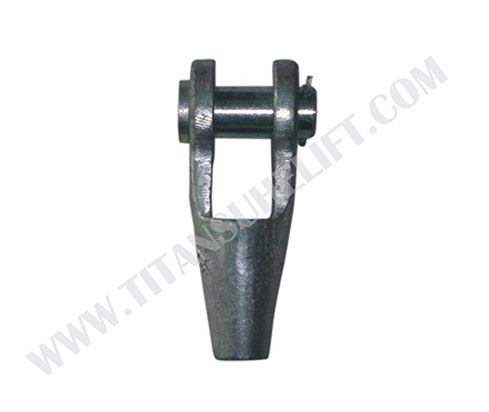

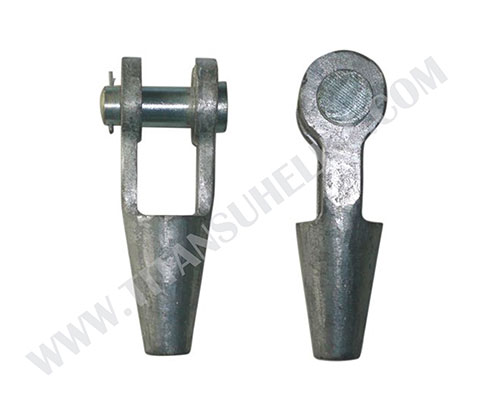

US Type Mooring Wire Open Spelter Sockets (US416)

Diameter	Dimensions(mm)
(in)	A	C	D	F	J	L
1/4	115.8	23.1	17.5	9.7	57	40
5/16-3/8	123	20.6	20.6	12.7	57	44.5
7/16-1/2	141.2	25.4	25.4	14.2	64	51
9/16-5/8	171.5	32	30	17.5	76	64
3/4	202	38.1	38.1	20.6	89	76
7/8	235	44.5	44.5	23.9	102	89
1	268	50.8	50.8	28.7	114	102
1 1/8	300	57.2	57.2	31.8	127	117
1-1/4-1-3/8	335	63.5	63.5	38.1	140	127
1 1/2	384	76.2	70	41.4	152	152
1 5/8	413	76.2	76.2	44.5	165	165
1-3/4-1/7/8	464	89	89	51	191	178
2-2-1/8	546	102	95.3	57	216	229
2-1/4-2-3/8	597	114.3	108	63.5	229	254
2-1/2-2-5/8	648	127	120.7	73	248	273
2-3/4-2-7/8	692	133.4	127	79	279	279
3-3-1/8	737	146	133.4	86	305	286
3-1/4-3-3/8	784	159	140	92	330	298
3-1/2-3-5/8	845	171.5	152.4	98.6	356	318
3-3/4-4	921	191	177.8	108	381	343

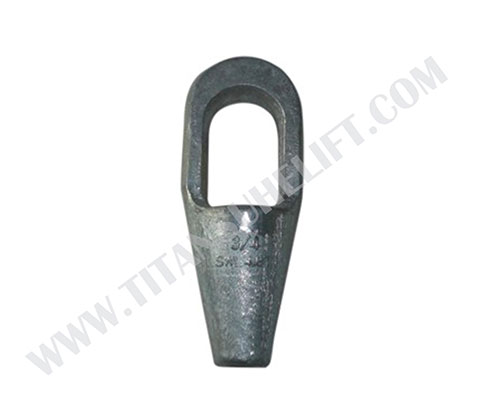

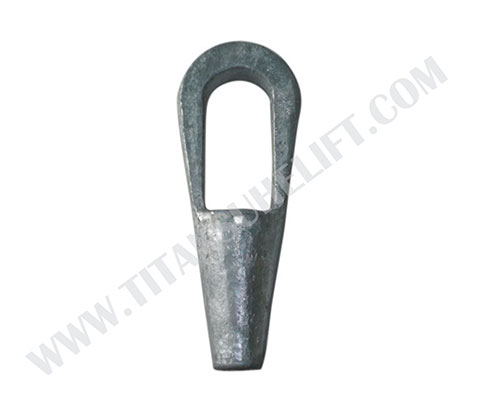

US Type Mooring wire Closed Spelter Sockets (US417)

Diameter	Dimensions(mm)
(in)	A	B	C	D	F	J	H
1/4	11.43	12.7	38	22.4	9.7	57	13
5/16-3/8	124	16	43	24.6	12.7	57	18
7/16-1/2	138.2	18	51	30	14.2	64	22
9/16-5/8	160.3	1	67	36	19.5	76	25
3/4	192	27	76	42	20.6	89	32
7/8	222.3	32	92	48	23.9	102	38
1	251	35	105	58	28.7	114	44
1 1/8	279	38	114	65	31.8	127	51
1-1/4-1-3/8	308	41.4	135	71.4	38.1	140	57
1 1/2	354	49	135	81	41.4	152	64
1 5/8	384	54	146	83	44.5	165	70
1-3/4-1/7/8	438	56	171	95	51	191	76
2-2-1/8	495	62	194	111	57	216	83
2-1/4-2-3/8	537	67	216	127	63.5	229	92
2-1/2-2-5/8	597	79	241	140	73	248	102
2-3/4-2-7/8	645	79	273	159	79	279	124
3-3-1/8	686	83	392	171	86	305	133
3-1/4-3-3/8	743	102	311	184	92	330	146
3-1/2-3-5/8	787	102	330	197	98.6	356	159
3-3/4-4	845	108	362	216	108	381	178

US Type Wedge Sockets (US421)

Diameter	Dimension(in)
(in)	A	B	C	D	P	T	U	V
3/8	5.63	2.77	0.81	0.81	1.56	0.44	1.25	1.38
1/2	6.81	3.55	1	1	1.94	0.53	1.75	1.88
5/8	8.16	4.36	1.25	1.19	2.25	0.69	2	2.19
3/4	9.78	4.81	1.5	1.38	2.62	0.78	2.34	2.56
7/8	11.16	4.65	1.75	1.63	3.12	0.88	2.69	2.94
1	12.75	5.08	2	2	3.75	1.03	2.88	3.28
1 1/8	14.38	5.51	2.25	2.25	4.25	1.19	3.13	3.56
1 1/4	16	7.94	2.5	2.5	4.75	1.31	3.38	3.81

JIS type Open wire rope sockets

Diameter	Dimensions(mm)
(mm)	D	d	B	L	L1	L3	t	t1
10	14	19	33	144	66	56	6	8
12	16	21	35	159	73	61	7	9
14	18	23	37	176	81	67	8	11
16	20	25	40	193	88	74	9	13
18	23	28	43	210	95	81	11	15
20	25	31	47	227	103	86	13	18
22	30	34	52	245	111	93	14	20
24	32	37	56	262	119	98	16	22
25	33	40	60	281	127	106	18	24
28	36	43	65	298	135	111	19	26
30	38	46	68	316	143	118	21	28
32	40	49	72	335	151	125	23	31
34	42	52	75	353	159	131	25	33
36	44	55	80	373	168	138	26	35
38	47	58	84	392	177	144	27	36
40	49	61	88	413	186	153	29	38
42	52	64	92	434	196	160	30	40
45	54	70	101	474	214	175	33	44
48	57	73	104	494	223	183	35	46
50	60	76	109	516	233	191	36	48
53	63	79	113	536	242	199	38	50
56	66	83	119	567	256	211	40	53
60	70	90	129	619	279	232	44	57
63	74	93	133	641	289	240	46	58

JIS type closed wire rope sockets

Diameter	Dimensions(mm)
(mm)	D	B	C	L	L1	H	R
10	14	32	15	144	66	18	28
12	16	34	17	159	73	20	32
14	18	37	19	176	81	22	35
16	20	40	21	193	88	24	38
18	23	43	24	210	95	27	41
20	25	47	26	227	103	30	44
22	30	52	29	245	111	33	48
24	32	56	31	262	119	36	51
25	33	60	34	281	127	39	54
28	36	65	36	298	135	41	58
30	38	68	39	316	143	44	61
32	40	72	42	335	151	47	64
34	42	75	44	353	159	50	68
36	44	80	47	373	168	53	72
38	47	84	47	392	177	56	75
40	49	88	52	413	186	59	79
42	52	92	54	434	196	61	83
45	54	101	60	474	214	67	91
48	57	104	62	494	223	70	95
50	60	109	65	516	233	73	99
53	63	113	67	536	242	76	103
56	66	119	71	567	256	80	109
60	70	129	78	619	279	87	119
63	74	133	81	641	289	90	123

Still not find the material handling equipment you need, Contact Titansuhe for custom wire sling parts.

Wire Rope Sockets

Attention of Wire Rope Sockets

Data Sheet of Wire Rope Sockets

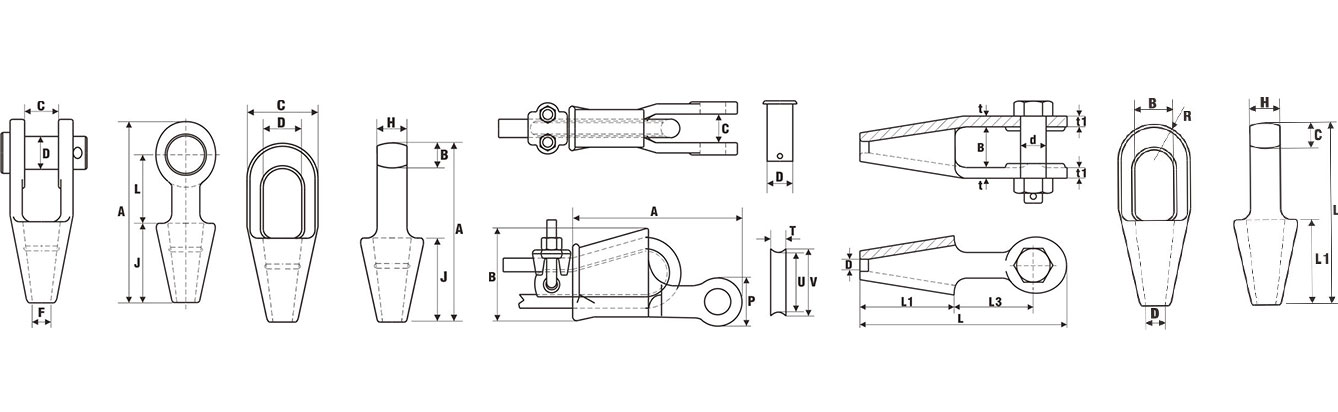

Drawing of Wire Rope Sockets
