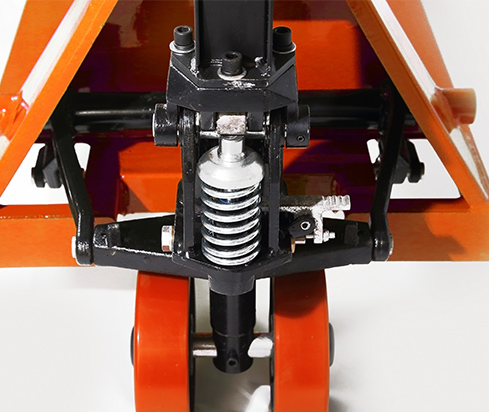

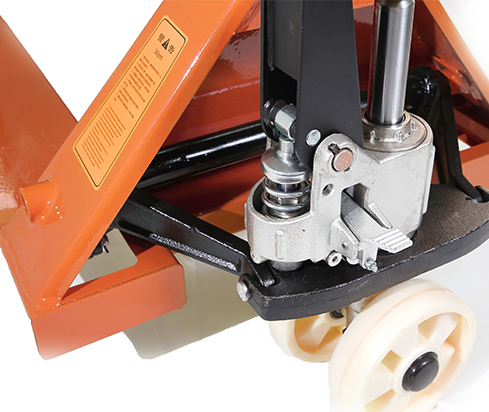

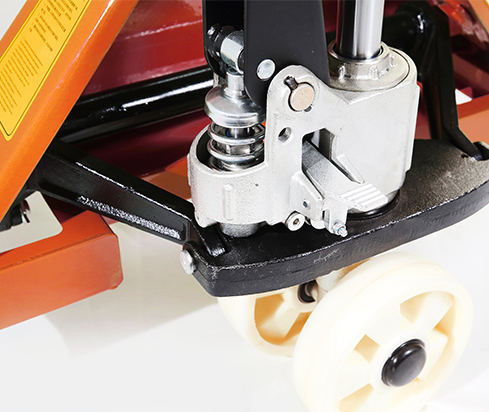

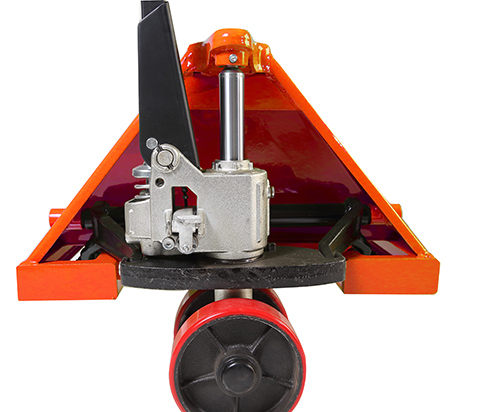

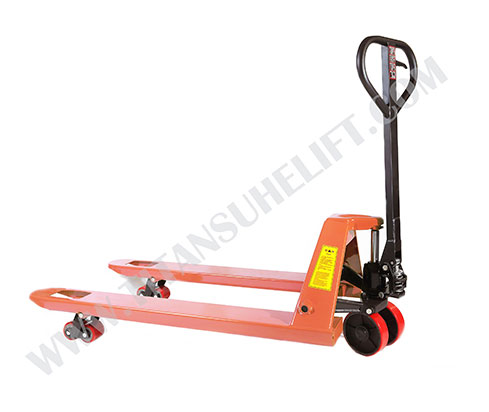

As most effective and economic material handling devices, HYDRUALIC HAND PALLET TRUCK is always the most favorite no matter for the whole seller, retailers or for the end user. Our hydraulic hand pallet truck features with innovative design, comprehensive testing and durable quality.

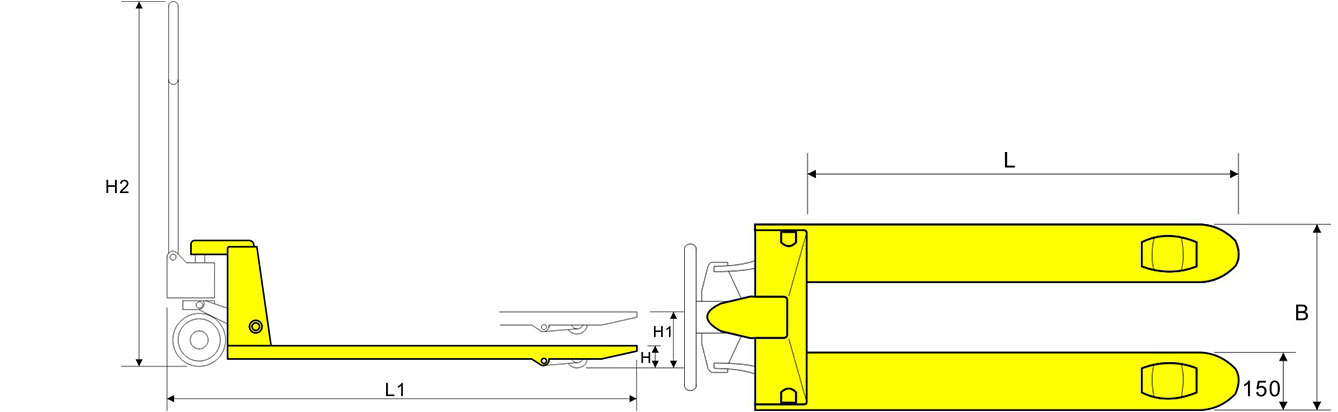

Capacity | kg | 2000 | 2500 | 3000 | 5000 |
Min. Fork Height | H(mm) | 80 | 80 | 80 | 80 |
Max. Fork Height | H1(mm) | 200 | 190-200 | 190-200 | 195 |
Max. Lifting Height | mm | >110 | >110 | >110 | >110 |
Fork Width | B(mm) | 550/685 | 550/685 | 550/685 | 685 |
Fork Length | L(mm) | 1200 | 1200 | 1200 | 1200 |
Fork Size | mm | 150x55 | 150x55 | 160x60 | 180x50 |
Tandem Loading Wheel | mm | Φ80x70 | Φ80x70 | Φ80x70 | Φ80x67 |
Steering Wheel | mm | Φ180x50 | Φ180x50 | Φ180x50 | Φ180x60 |
Material of Wheel | mm | Nylon/PU | Nylon/PU | Nylon/PU | Nylon/PU |
Net Weight | kg | 68/70 | 73/75 | 78/80 | 140 |
