HSZ-A 620 1.5 ton chain hoist from Titansuhe is an economic model designed for general lifting purposes with very attractive prices. This chain block hoist is widely accepted and used on occasions that do not have critical requirements for overhead lifts.
Working load: 1.5ton, available capacity from 0.5t up to 20t
Standard Lift: 2.5m, long-chain lift available
Factory color: Orange, other color available
Load Chain Size: 7mm x 21mm x 1
Hand Chain Size: 5mm x 25mm
Weight: 14kg
Box Dimension: 26x19x19cm

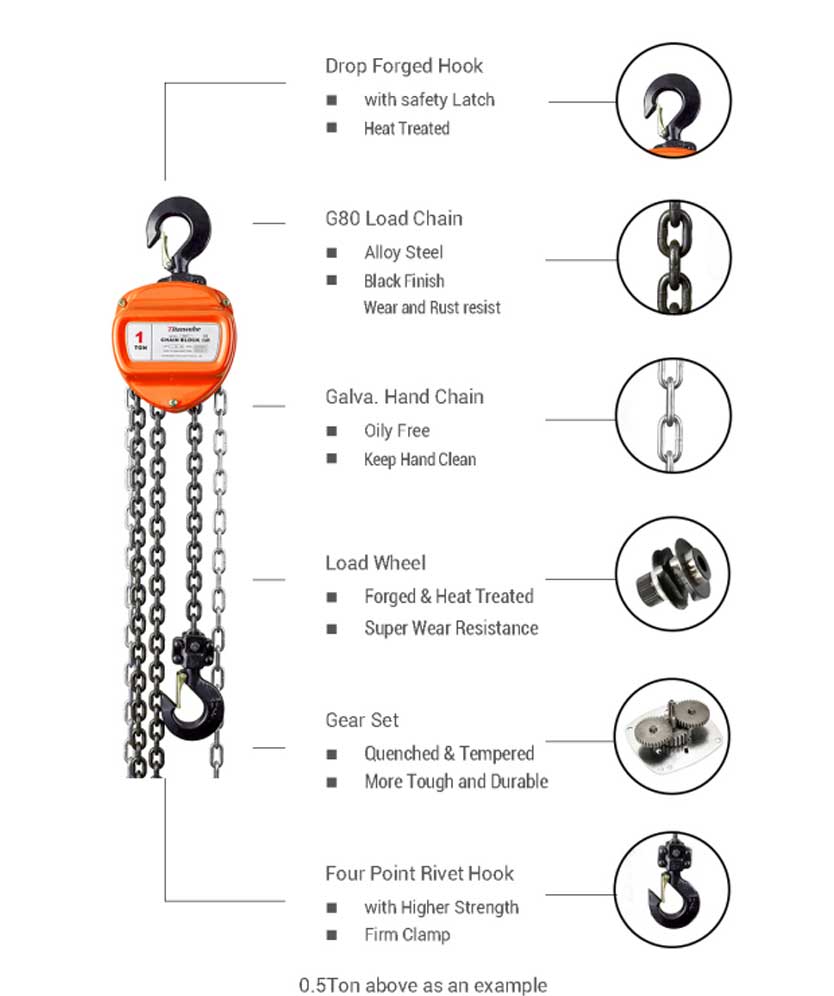

This hoist is the most economic triangle shape hand chain block originating from the German Yale model. It has the same construction as other heavy-duty chain hoists, but it looks more compact. Due to its good quality and competitive prices, this hoist is the ideal choice for these applications that have no high-frequency usage or work as a disposal hoist for non-critical applications.
Similar shape to Germany Yale model chain pulley block, Triangle shape
The economic model for overhead lift with a very attractive price

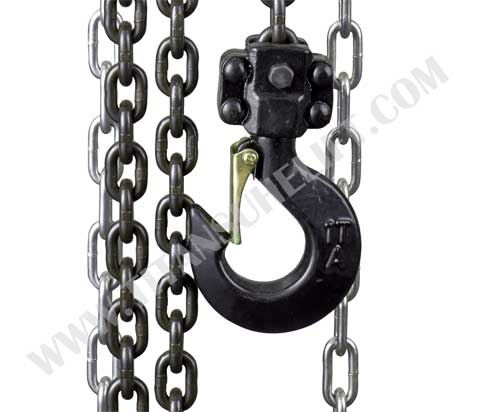

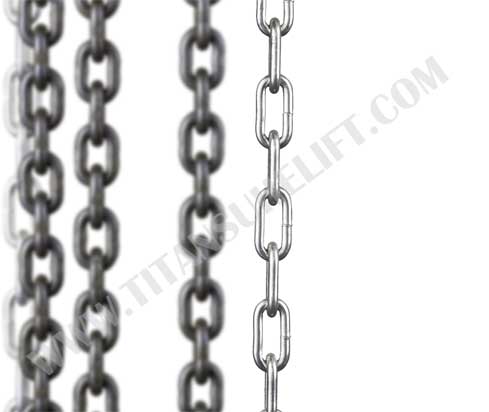

Alloy steel chain in Grade 8 quality
Corrosion-resistant galvanized hand chain
Automatic Double Pawl Braking System.
Asbestos Free Friction Disc
Industrial Powder Coating
4 times of rated working load safety factor

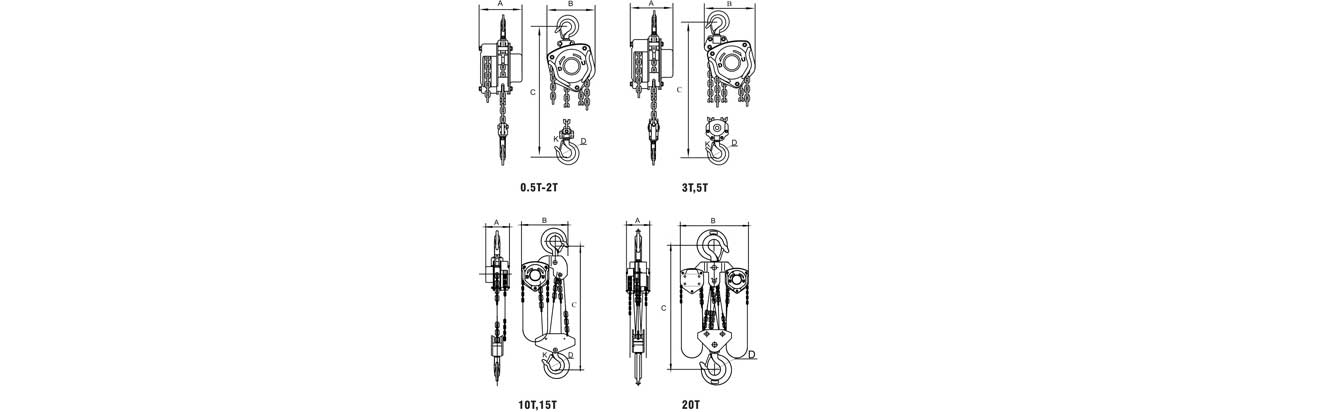

Model | Capacity (t) | Standard lift (m) | Running test load (KN) | Effort required to lift rated load (N) | Strands of load chain | Load chain size(mm) | Dimension (mm) | Net weight (kg) | Packing measurement (cm) | Extra weight per metre of extra lift(kg) | ||||
A | B | C | D | K | ||||||||||
HSZ-A620-0.5 | 0.5 | 2.5 | 7.5 | 221 | 1 | 6x18 | 113 | 125 | 255 | 36 | 30 | 8.5 | 25x18x13.5 | 1.7 |
HSZ-A620-1 | 1 | 2.5 | 15 | 304 | 1 | 6x18 | 126 | 147 | 306 | 40 | 34 | 11 | 25x20x14.7 | 1.7 |
HSZ-A620-1.5 | 1.5 | 2.5 | 22.5 | 343 | 1 | 8x24 | 141 | 183 | 368 | 45 | 38 | 18 | 33x25x16 | 2.3 |
HSZ-A620-2 | 2 | 3 | 30 | 410 | 2 | 6x18 | 141 | 183 | 368 | 50 | 41 | 18 | 33x25x16 | 2.3 |
HSZ-A620-3 | 3 | 3 | 45 | 343 | 2 | 8x24 | 142 | 183 | 486 | 58 | 48 | 27 | 33x27x16 | 3.7 |
HSZ-A620-5 | 5 | 3 | 75 | 414 | 2 | 10x30 | 163 | 215 | 616 | 64 | 52 | 42 | 43x34x19 | 5.6 |
HSZ-A620-10 | 10 | 3 | 150 | 414 | 4 | 10x30 | 163 | 404.5 | 750 | 85 | 64 | 83 | 50x41x21 | 9.7 |
HSZ-A620-20 | 20 | 3 | 300 | 414x2 | 8 | 10x30 | 191 | 595 | 1000 | 110 | 85 | 193 | 64x38x64 | 19.4 |
Titansuhe have chain crane bulk wholesale at competitive prices, which improve construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.
