Stainless Steel Bow Shackle

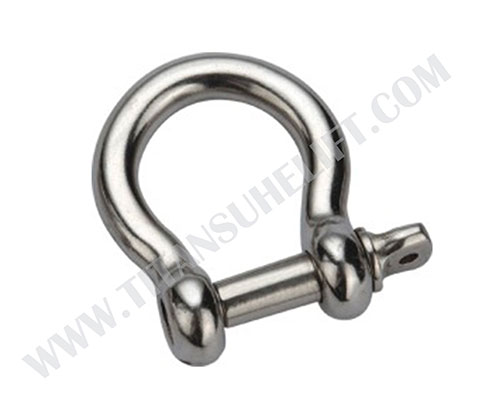

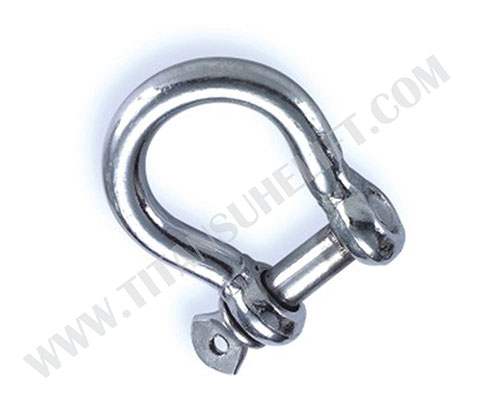

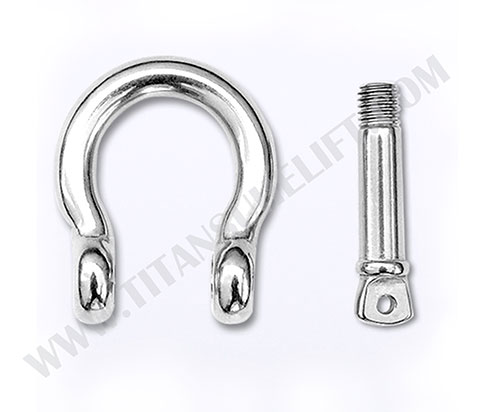

Bow type stainless steel anchor shackles are used to directly connect with the object to be lifted or to be secured. It is also widely used in rigging as a end fitting. The Bow Shackles can come either with screw pin or a pin with self-locking feature so that the pin will not back out. The self-locking pin is integral to the shackle body, it is not removable and will not fall out when open. Made of stainless steel material that grade to 304 or 316, the shackles are constructed with maximum corrosion resistance and durability. Available in sizes ranging from 3/16" to 1", it is ideal for marine applications or clean room applications.


pho
stainless bow shackle
stainless shackles
stainless steel lifting shackles
stainless steel shackle

Data Sheet of Stainless Steel Bow Shackle

1) European Type Bow Shackle, Stainless Steel


Size

Dimension(mm)

W.L.L

N.W.

(mm)

H

A

B

C

D

D1

(kg)

(g/pc)

5

19

10

11

16

5

5

80

19

6

25

13

14

20

6

6

100

34

8

32

16

18

24

8

8

200

70

10

38

19

20

32

10

10

320

130

12

51

25

26

38

12

12

520

260

16

64

32

33

56

16

16

800

500

20

76

38

40

66

20

20

1100

800

22

89

44

50

74

22

22

1500

1300

25

100

51

57

80

25

25

2100

2000

28

115

57

73

94

28

28

3000

3000



2) U.S type Bow Shackle, Stainless Steel, AISI304 or 316


Size

Dimension(mm)

D1

W.L.L

N.W.

(in)

H

A

B

C

D

(in)

(lbs)

(g/pc)

3/16

22

9

14

15

5

1/4

250

23

1/4

28

12

15

20

6

5/16

330

55

5/16

31

13

19

21

8

3/8

500

86

3/8

36

16

23

26

10

7/16

750

141

7/16

42

18

27

29

11

1/2

1000

173

1/2

48

21

30

33

12

5/8

1500

286

5/8

60

27

38

43

16

3/4

2250

627

3/4

71

32

46

51

20

7/8

3250

1030

7/8

84

36

53

58

22

1

4250

1540

1

95

43

60

68

25

1 1/8

5500

2420



For one-stop system service with wire rope components, Titansuhe assure you that all of our products and solutions are cost-effective and reliable.

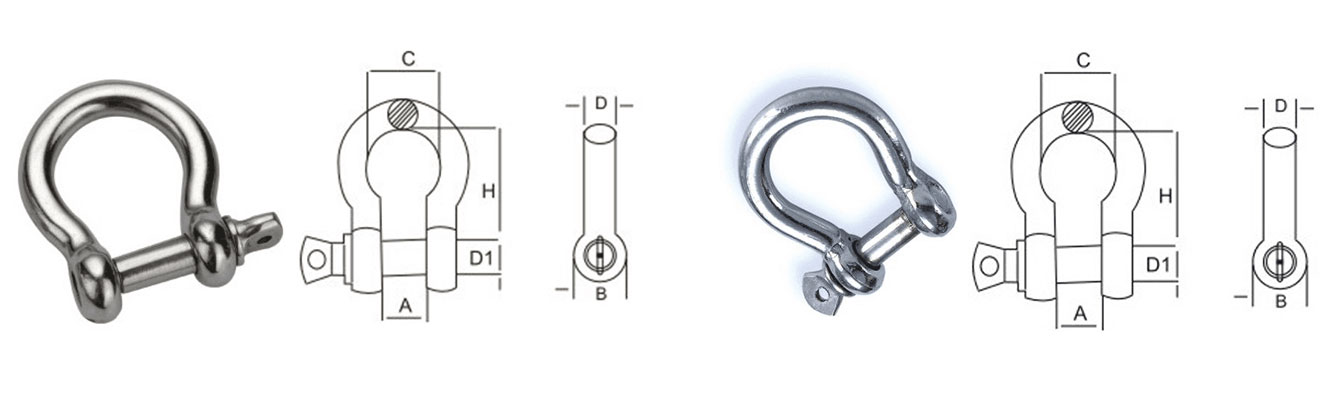

Drawing of Stainless Steel Bow Shackle
