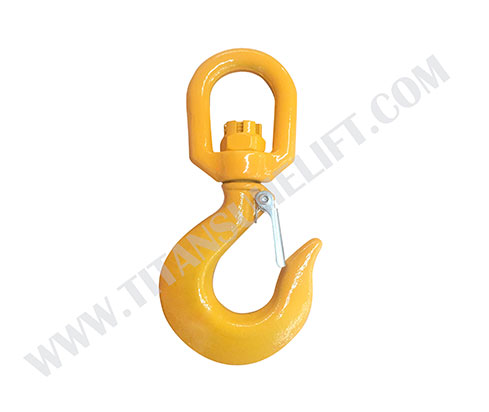

Made of carbon steel that grade to 43 and alloy steel that grade to 70 and 80, TITANSUHE's swivel hook with latch has the advantage of both price competition and quality assurance. They are designed for overhead lifting purpose

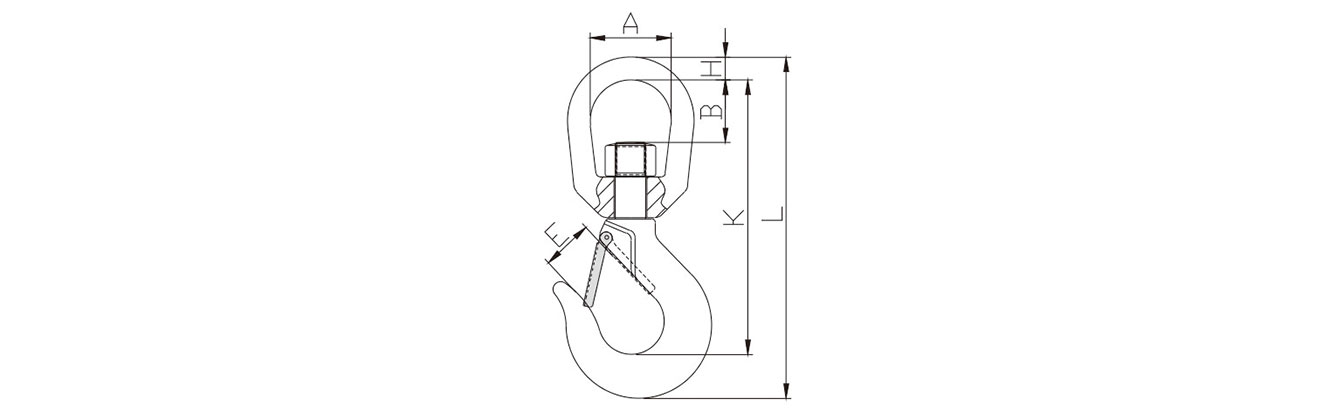

Carbon | Alloy | Dimension (mm) | N.W. (kg/pc) | |||||||
WLL(t) | B.L.(t) | WLL(t) | B.L.(t) | A | E | B | H | K | L | |
0.5 | 2.5 | 0.75 | 3.75 | 32 | 20 | 22.5 | 9 | 111 | 138 | 0.3 |
0.75 | 3.75 | 1 | 5 | 32 | 22 | 22.5 | 9 | 112 | 140 | 0.34 |
1 | 5 | 1.5 | 7.5 | 38 | 23 | 29.5 | 12 | 133.5 | 167 | 0.57 |
1.5 | 7.5 | 2 | 10 | 44 | 26 | 33 | 15.8 | 150.5 | 192 | 0.57 |
2 | 10 | 3 | 15 | 44 | 28 | 33 | 15.8 | 163 | 208 | 1.24 |
3 | 15 | 5 | 25 | 50 | 35 | 39 | 18 | 190 | 242 | 2.25 |
5 | 25 | 7 | 35 | 64 | 43 | 53 | 25 | 248.5 | 318 | 4.66 |
7.5 | 37.5 | 11 | 55 | 70 | 55 | 53 | 28.5 | 282 | 369 | 7.4 |
10 | 50 | 15 | 75 | 79 | 61 | 58 | 32 | 332 | 431 | 10.6 |
15 | 75 | 22 | 110 | 105 | 81 | 114 | 40 | 431 | 547 | 21.4 |
20 | 100 | 30 | 150 | 105 | 82.5 | 105 | 40 | 472 | 603 | 32 |
Titansuhe is dedicated to providing a full range of chain hooks manufacturers, we offer cost-effective and reliable solutions.
