Grade 100 Chain Shortening Grab Hooks

Chain shortening hook is designed with an innovative cradle which allows for 100% efficiency of lifting chains. The narrow neck of grab hooks can easily grab the chain and hook back to chain leg and form a choker. It can also use as a chain shortener in another name chain shortening hooks. In this case, you should minimize the twist of lifting chains and ensure the lifting chains are fully engaged in hooks. Eye head design for permanently attach to lifting chain and avoid accident slip off. It offers more safety and used for the applications that requires for critical safety. Clevis head provides fast and efficient chain slings assembly. TITAN SUHE provides both Grade 100 eye grab chain shortening hooks and clevis grab chain shortening hooks.


pho

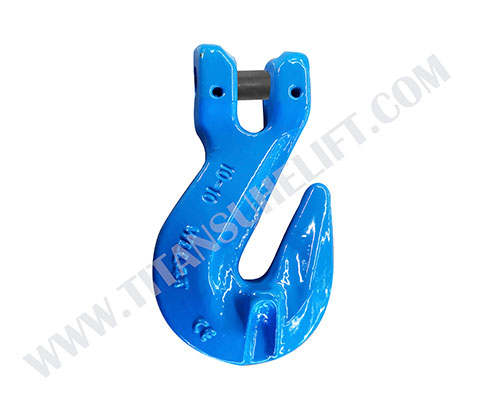

chain end hooks

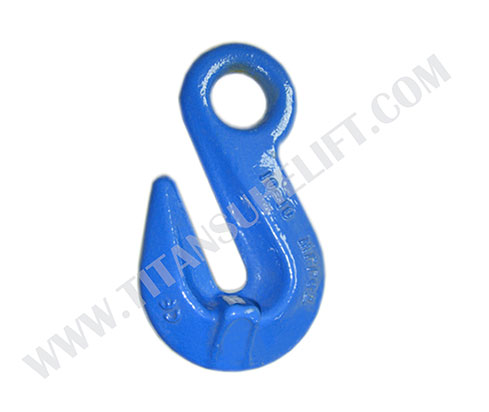

hook for chain hoist

Data Sheet of Grade 100 Chain Shortening Grab Hooks

Grade 100 chain shortening eye grab hooks TCSH1008

Size

W.L.L.

B.L

Dimension(mm)

Net Weight

(t)

(t)

E

Ф

D

M

(kg/pc)

6-10

1.4

5.6

8

14.5

30.5

43.5

0.2

8-10

2.5

10

10.8

18

37

53

0.28

10-10

4

16

13.5

22.5

48.5

42

0.72

13-10

6.7

26.8

16.5

28

59

96

1.6

16-10

10

40

19.2

36

74

112.5

2.45

20-10

16

64

24

43.5

89.5

143

4.72

22-10

19

76

27

48.5

100.5

160.5

8.2


Grade 100 chain shortening clevis grab hooks TCSH1009

Size

W.L.L.

B.L

Dimension(mm)

Net Weight

(t)

(t)

A

B

E

M

L

(kg/pc)

6-10

1.4

5.6

7.5

32

8

43.5

75

0.22

8-10

2.5

10

9.5

36

10.8

53

93

0.34

10-10

4

16

12

46

13.5

42

128

0.82

13-10

6.7

26.8

15

59

16.5

96

166

1.75

16-10

10

40

17.5

70

19.2

112.5

189

2.88

20-10

16

64

24

85

24

143

224

4.84

22-10

19

76

27

100

27

160.5

262

8.3



As a manufacturing group and professional supplier of chain hooks manufacturers, Titansuhe has committed to the development of lifting products, material handling, and rigging equipment for more than 15 years.

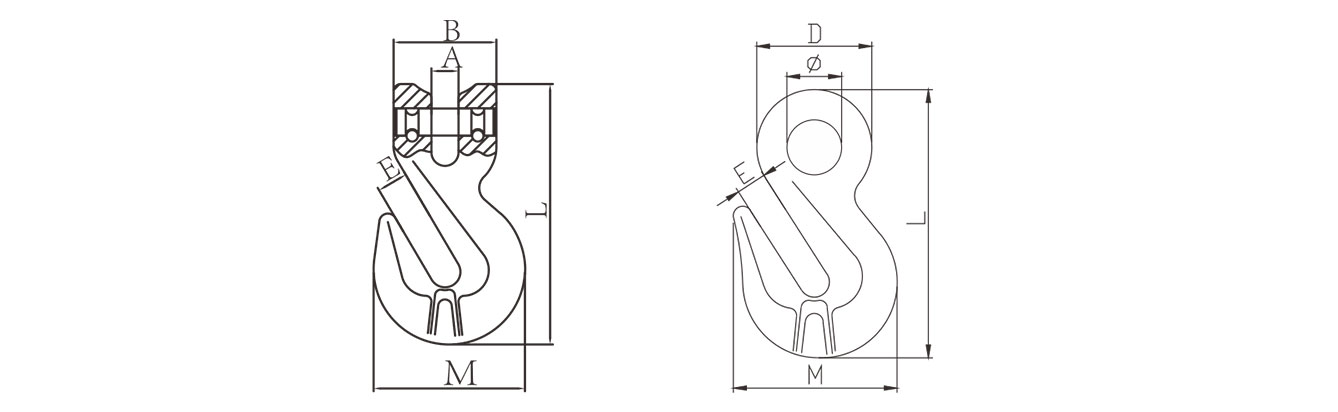

Drawing of Grade 100 Chain Shortening Grab Hooks

Drawing of Grade 100 Chain Shortening Grab Hooks
