2 Inch Ratchet Straps

2 inch Ratchet straps is the most used tie down device to lashing and secure goods during transportation. It is designed for heavy duty purpose and rated from 3000kg, 3500kg, 4000kg 4500kg and 5000kg breaking strength. 2" strap width can well protect the secured cargo surface and its package.


2 inch ratchet straps are two pieces construction coming as a fixed end and a loose end. Each end are sewn with a plastic tag clearing indicates the straps information such as length, width, conformed specification, production date, tracking number and so on.


Ratchet buckles for this 2" strap is aluminum handle with Ergonomic design that provide comfortable ratcheting when tightening or loosing the cargo

Built-in capacity strips on belt can help you quickly recognize and select the proper ratchet straps without checking the tag information before you open the package.


According to the different ratchet strap belt application, this 2" ratchet straps can be manufactured with double J hook or flat hook that can easily hook in the anchor point. It can also be manufactured with D ring and Triangle ring that can be attached to the hooking point on truck or trailer or other transportation facilities.

pho

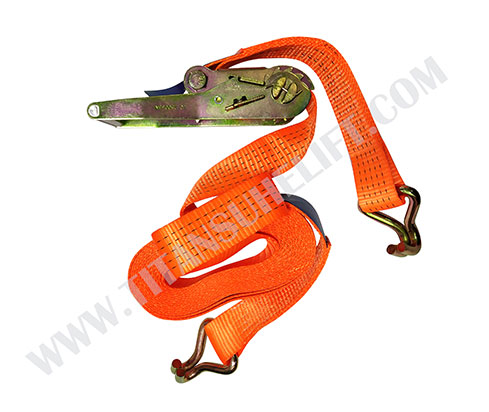

2 Inch Ratchet Tie Downs

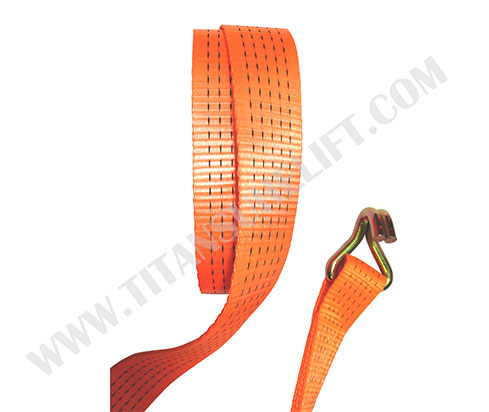

2 Inch Tie Down Straps

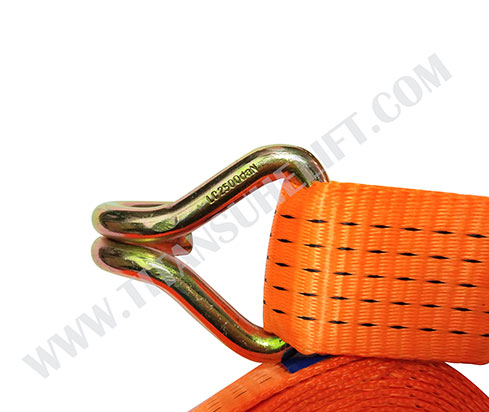

2 Inch Cargo Straps

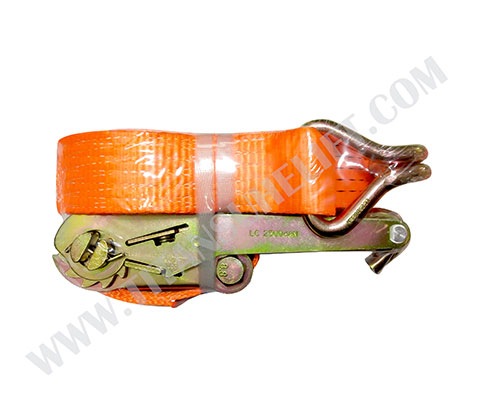

2 Inch Lashing Straps

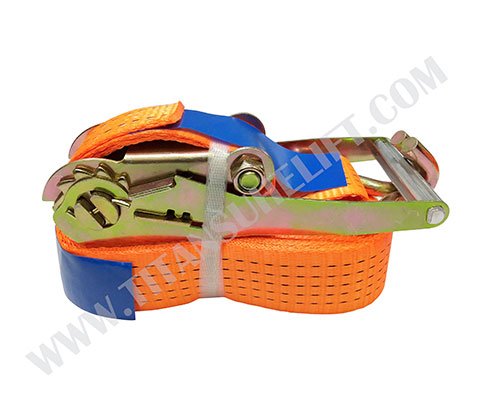

2 Inch Ratchet Belt

Data Sheet of 2 inch Ratchet Straps

Width

W.L.L.

Min. Breaking Strength

Length (m)

N.W. (kg)

Sets Per Carton

Dimension of Carton(cm)

(mm/inch)

kg

lbs

kg

lbs

Fixed end

Loose end




50(2")

1000

2200

3000

6600

0.5

7.5

2

12

49x30x29

50(2")

1150

2500

3500

7500

0.5

7.5

2.2

12

49x30x29

50(2")

1350

3000

4000

9000

0.5

7.5

2.4

12

49x30x29

50(2")

1500

3300

4500

9900

0.5

7.5

2.5

12

49x30x29

50(2")

1650

3600

5000

10800

0.5

7.5

2.6

12

49x30x29
