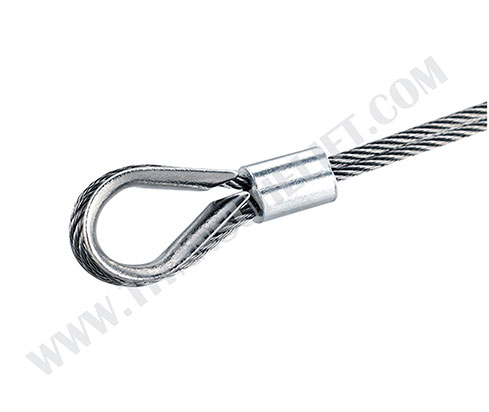

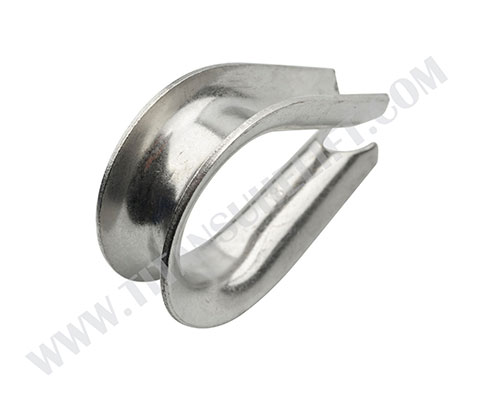

Stainless steel thimbles are best suited for outdoor applications and are highly resistant to rust. They are also ideal for being used in or near saltwater environments where corrosion frequently occurs, and are the best choice when using stainless steel cable or lifting chains. TITANSUHE produce all the wire rope thimbles with mild steel or stainless steel. When it is made of stainless steel, we have grade 304, grade 316 and grade 316L for options.

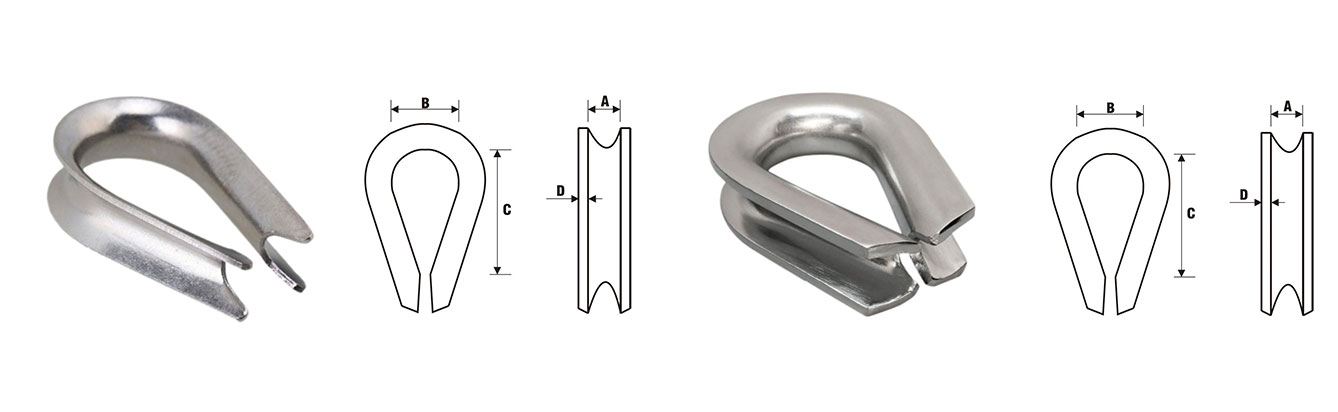

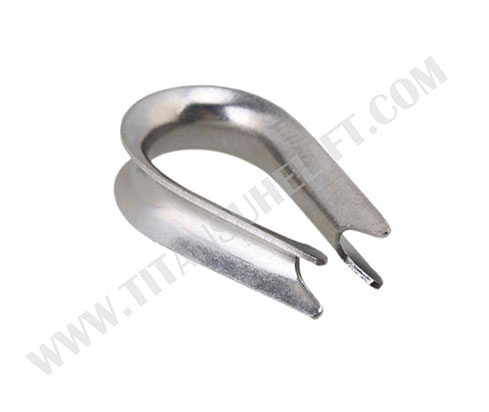

U.S. Type G411 Wire Rope Thimble, Stainless Steel AISI 304 or 316
Size | Dimension(in) | N.W. | |||
(in) | A | B | C | D | (g/pc) |
1/8 | 0.16 | 0.69 | 1.31 | 0.05 | 7 |
3/16 | 0.22 | 0.69 | 1.31 | 0.05 | 8 |
1/4 | 0.28 | 0.69 | 1.31 | 0.05 | 9 |
5/16 | 0.34 | 0.81 | 1.5 | 0.05 | 12 |
3/8 | 0.41 | 0.94 | 1.63 | 0.06 | 15 |
1/2 | 0.53 | 1.13 | 1.88 | 0.08 | 70 |
5/8 | 0.66 | 1.38 | 2.25 | 0.13 | 200 |
3/4 | 0.78 | 1.63 | 2.5 | 0.14 | 250 |
7/8 | 0.94 | 1.88 | 3.5 | 0.16 | 470 |
1 | 1.06 | 2.5 | 4.25 | 0.16 | 570 |
1 1/8 | 1.31 | 2.75 | 4.5 | 0.22 | 1090 |
Remarks : Size 1/8in U.S Type Wire G411 Rope Thimbles are suitable for 0.16in steel wire ropes

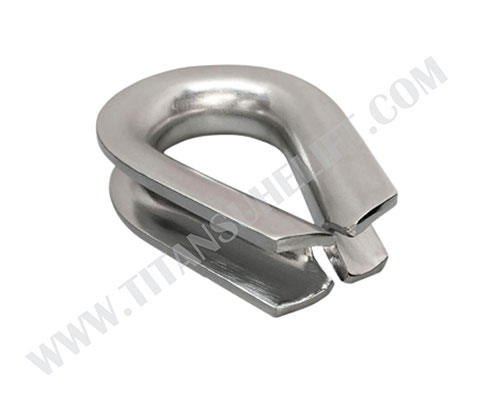

U.S. Type G414 Wire Rope Thimble, Stainless Steel AISI 304 or 316
Size | Dimension(in) | N.W. | |||
(in) | A | B | C | D | (g/pc) |
3/16 | 0.21 | 0.75 | 1.37 | 0.06 | 26 |
1/4 | 0.28 | 0.87 | 1.62 | 0.07 | 30 |
5/16 | 0.34 | 1.06 | 1.87 | 0.08 | 52 |
3/8 | 0.43 | 1.12 | 2 | 0.11 | 101 |
7/16 | 0.47 | 1.25 | 2.38 | 0.12 | 150 |
1/2 | 0.56 | 1.5 | 2.5 | 0.15 | 226 |
9/16 | 0.59 | 1.5 | 2.5 | 0.15 | 230 |
5/8 | 0.68 | 1.75 | 3 | 0.18 | 338 |
3/4 | 0.81 | 2 | 3.75 | 0.22 | 800 |
7/8 | 0.93 | 2.25 | 4 | 0.22 | 1050 |
1 | 1.12 | 2.5 | 4.37 | 0.25 | 1340 |
Remarks : Size 3/16in U.S Type G414 Wire Rope Thimbles are suitable for 0.21in steel wire ropes

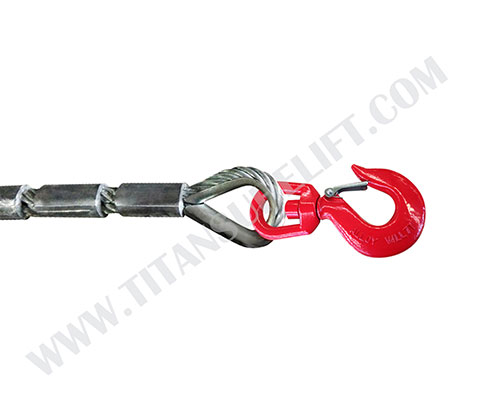

Titansuhe offers custom wire rope components for wide range of lifting tools and material handling equipment which can be used either for lifting systems or to rigging a lashing system.
