Galvznized Steel Wire Rope 6x12

6x12 and 6x24 construction rope are always coming with fiber core inside. These ropes are commercial quality wire rope with very competitive prices and be widely used for fishing, lashing and fencing purpose.

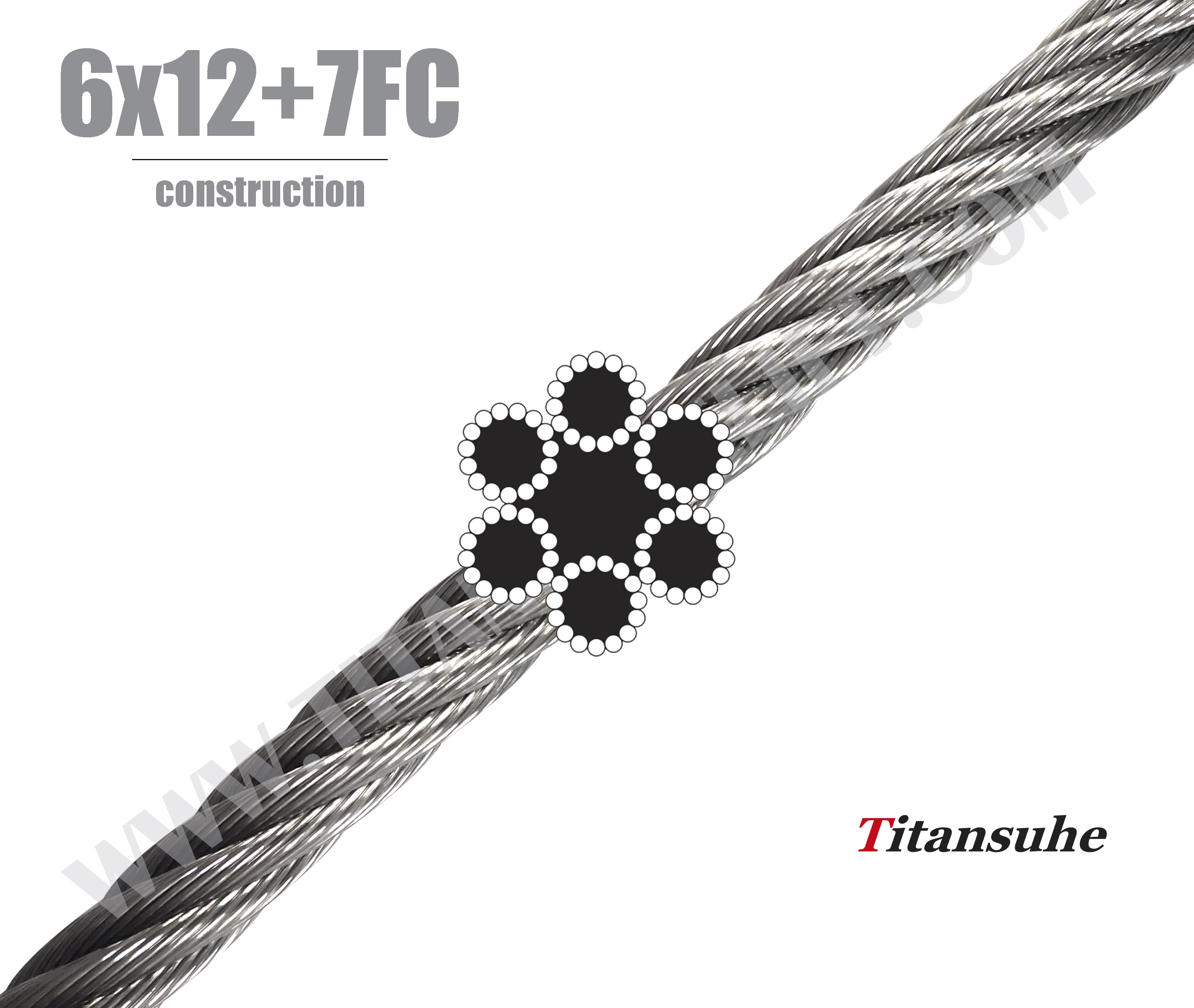

Quick View of Galvanized Steel Wire Rope 6x12+7FC and 6x24+7FC

Material: Carbon Steel or Stainless Steel
Construction: 6x12 and 6x24
Strand Number: 6
Wire Number of Each Strand: 12 or 24
Rope Core: FC (Fiber core)
Specification: BS302 for 6x12+7FC, BS3068 for 6x24+7FC
Available Size: 5mm up to 50mm
Available Tensile Strength: 1570N/MM2, 1770N/MM2
Surface Treatment Options: Electric Galvanization, Hot Dip Galvanization, Self color with lubrication, PVC coating in different color
Packing: 1000m/reel as regular, coil packing or other shorter or longer length packing available by request

Date Sheet of Galvanized Steel Wire Rope 6x12+7FC and 6x24+7FC

Construction	Nominal Diameter	Approx weight	Nominal Tensile Strength		Construction	Nominal Diameter	Approx weight	Nominal Tensile Strength
	Nominal Diameter	Approx weight	Minimum Breaking Strength (kN)			Nominal Diameter	Approx weight	Minimum Breaking Strength (kN)
	mm	kg/100m	1570N/mm²	1770N/mm²		mm	kg/100m	1570N/mm²	1770N/mm²
6x12+7FC		NF/SF			6x24+7FC		NF/SF
	5	6.28/5.78	8.2	9.25		5	7.95/7.60	11	12.4
	6	9.04/8.32	11.8	13.3		8	20.40/19.50	28.1	31.7
	7	12.30/11.30	16.1	18.1		9	25.80/24.60	35.6	40.1
	8	16.10/14.80	21	23.7		10	31.80/30.40	44	49.6
	9	20.30/18.70	26.6	30		11	38.50/36.80	53.2	60
	10	25.10/23.10	32.8	37		12	45.80/43.80	63.3	71.4
	11	30.40/28.00	39.7	44.8		13	53.70/51.40	74.3	83.8
	12	36.10/33.30	47.3	53.3		14	62.30/59.60	86.2	97.1
	14	49.20/45.30	64.3	72.5		16	81.40/77.80	113	127
	16	64.30/59.10	84	94.7		18	103.00/98.50	142	161
	18	81.30/74.80	106	120		20	127/122	176	198
	20	100/92.40	131	148		22	154/147	213	240
	22	121/112	159	179		24	183/175	253	285
	24	145/133	189	213		26	215/206	297	335
	26	170/156	222	250		28	249/238	345	389
	28	197/181	257	290		30	286/274	396	446
	30	226/208	295	333		32	326/311	450	507
	32	257/237	336	379		34	368/351	508	573
	34	290/267	379	428		36	412/394	570	642
	36	325/299	425	479		38	459/439	635	716
	38	362/334	474	534		40	509/486	703	793
	40	402/370	525	592		42	561/536	775	874
	42	442/407	579	652		44	616/589	851	959
	44	486/447	635	716		46	673/643	930	1050
	46	531/488	694	782		48	733/700	1010	1140

Titansuhe is dedicated to providing a full range of wire rope sling parts, we offer cost-effective and reliable solutions.

Galvznized Steel Wire Rope 6x12

Quick View of Galvanized Steel Wire Rope 6x12+7FC and 6x24+7FC

Date Sheet of Galvanized Steel Wire Rope 6x12+7FC and 6x24+7FC

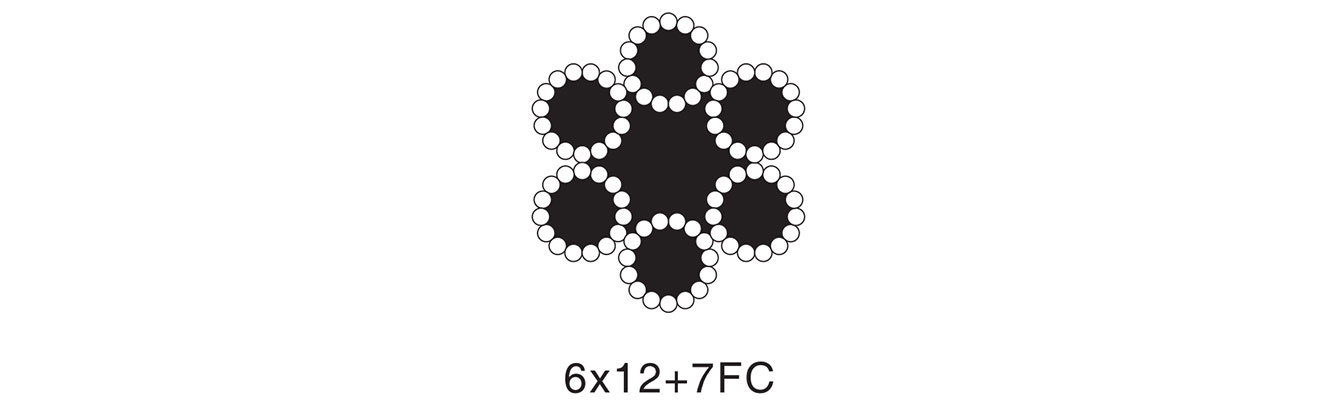

Drawing of Galvznized Steel Wire Rope 6x12

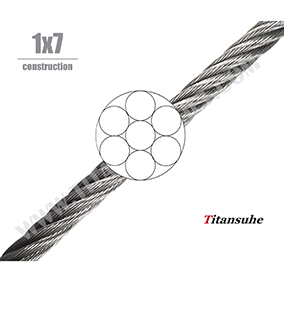

Related Steel Wire Rope
