TITANSUHE provide both commercial grade aircraft cables and military specification aircraft cables. Both grade aircraft cables are with fiber core and made by either carbon steel or stainless steel. Military specification aircraft cables have better tensile strength than commercial purpose aircraft cable.

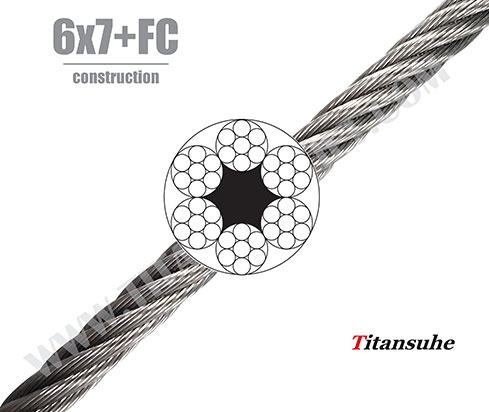

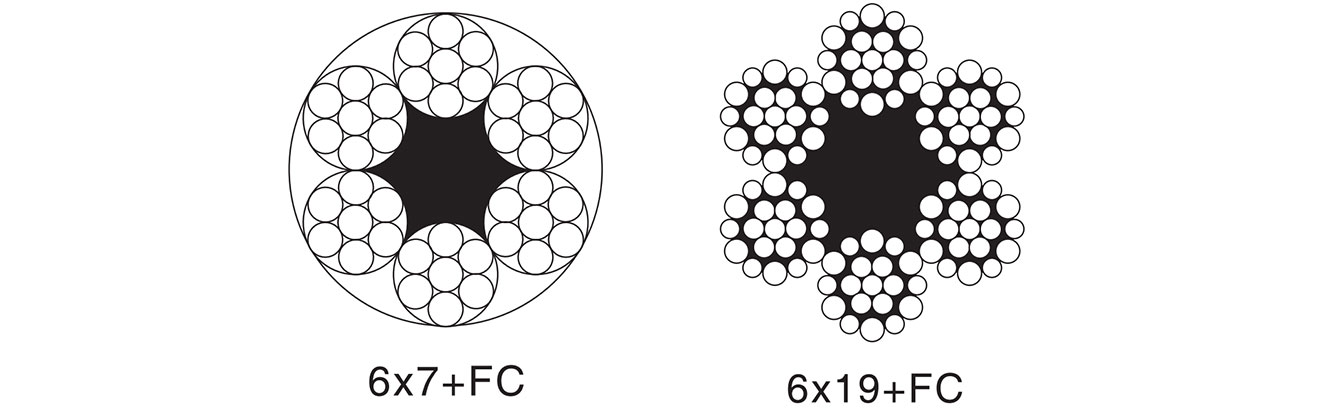

Construction: 6x7+FC
Rope Dia. | Wire dia. | Tensile Strength | Breaking Strength | Appromix Weight | |
Nominal Dia. | Tolerance | ||||
mm | mm | mm | N/mm2 | kN | kg/100m |
1.8 | 0.14 | 0.2 | 1960 | 2.28 | 1.4 |
2.15 | 0.16 | 0.24 | 1960 | 3.28 | 2 |
2.5 | 0.2 | 0.28 | 1960 | 4.47 | 2.7 |
3.05 | 0.24 | 0.34 | 1870 | 6.27 | 4 |
3.6 | +0..36 -0.07 | 0.4 | 1870 | 8.69 | 5.5 |
4.1 | +0..41 -0.08 | 0.45 | 1770 | 10.4 | 7 |
4.5 | 0.36 | 0.5 | 1770 | 12.86 | 8.7 |
5.4 | 0.43 | 0.6 | 1670 | 17.46 | 12.5 |

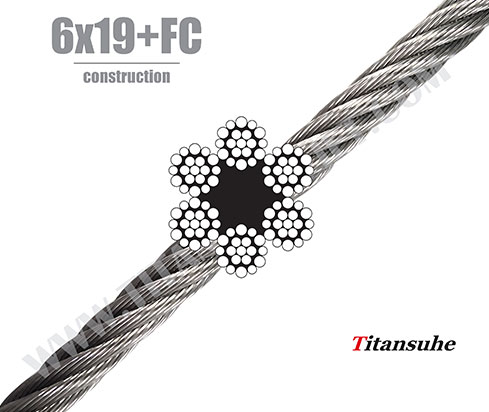

Construction: 6x19+FC
Rope Dia. | Wire dia. | Tensile Strength | Breaking Strength | Appromix Weight | |
Nominal Dia. | Tolerance | ||||
mm | mm | mm | N/mm2 | kN | kg/100m |
3 | 0.24 | 0.2 | 2060 | 6.27 | 3.8 |
3.3 | 0.27 | 0.22 | 1770 | 6.51 | 4.5 |
3.6 | 0.29 | 0.24 | 1770 | 7.76 | 5.4 |
4.2 | 0.34 | 0.28 | 1770 | 10.56 | 7.4 |
4.8 | +0..48 -0.09 | 0.31 | 1770 | 12.94 | 9 |
5.1 | +0..51 -0.10 | 0.34 | 1770 | 15.57 | 10.9 |
6.2 | 0.5 | 0.4 | 1670 | 20.34 | 15 |
Choose Titansuhe acomponents of wire rope, Choose custom designed professional solutions with reasonable and competitive prices.
