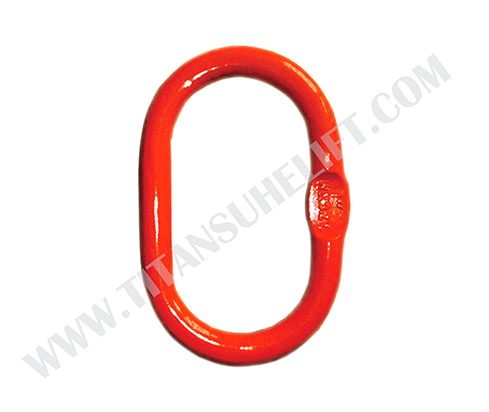

A-344 master control link is also made according to Crosby specification, used with steel wire rope to make one leg and two legs wire rope slings. This control link are drop forged with super strength, hardened and tempered to get extra wear resistance.

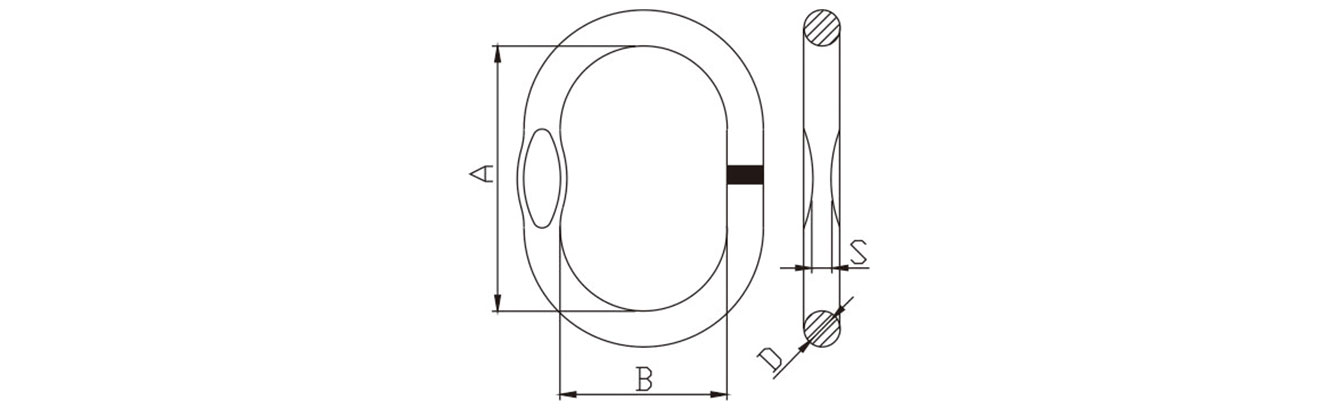

Size | Chain Size | Chain (4:1) | Wire Rope(5:1) | Dimension (mm) | N.W. (kg/pc) | ||||
1 Leg W.L.L(t) | 2 Leg W.L.L(t) | W.L.L(t) | A | B | D | S | |||
7/16" | 1/4" | 1.12 | 1.6 | 1.6 | 100 | 60 | 12 | 6 | 0.27 |
9/32" | 1.5 | - | |||||||
1/2" | 9/32" | 1.5 | 2.12 | 2.5 | 100 | 60 | 14 | 7.6 | 0.38 |
5/16" | 2 | - | |||||||
11/16" | 5/16" | 2 | 2.8 | 4 | 160 | 90 | 18 | 8.4 | 0.85 |
3/8" | 3.15 | - | |||||||
3/4" | 3/8" | 3.15 | 4.25 | 6.5 | 160 | 90 | 20 | 10.4 | 1.2 |
1/2" | 5.3 | - | |||||||
7/8" | 1/2" | 5.3 | 7.5 | 8 | 180 | 100 | 22 | 13.5 | 1.63 |
5/8" | 8 | - | |||||||
1" | 5/8" | 8 | 11.2 | 11.5 | 180 | 100 | 25 | 16.5 | 2.13 |
3/4" | 11.2 | - | |||||||
1-1/8" | 3/4" | 12.5 | - | 11.8 | 270 | 140 | 28 | 19 | 3.81 |
1-1/4" | 3/4" | 11.2 | 16 | 16 | 270 | 140 | 32 | 19 | 5.05 |
7/8" | 15 | - | |||||||
1-3/8" | 7/8" | 15 | 21.2 | 24 | 285 | 155 | 36 | 20 | 6.83 |
1" | 21.2 | - | |||||||
1-1/2" | 1-1/8" | 25 | - | 25 | 300 | 160 | 40 | 26 | 8.9 |
1-3/4" | 1" | 21.2 | 30 | 31.5 | 340 | 180 | 45 | 26 | 12.8 |
1-1/4" | 31.5 | - | |||||||
2" | 1-1/4" | 31.5 | 45 | 45 | 390 | 215 | 51 | 32 | 17.3 |
