Stainless Steel Swivel can be matched with lifting chain, wire ropes or straight hooks. TITAN SUHE provides a wide range of stainless steel swivels including swivel eye and eye, swivel jaw and jaw, swivel jaw and eye.
Type: Stainless steel swivel eye and eye, jaw and jaw, jaw and eye
Material: Stainless steel, AISI 304 AISI 316
Packing: carton, pallet/by customer requirements
Certifications: ISO9001, CE, SGS
All of our stainless steel swivels are solid structure with durable and long life
Every swivel has smooth surfaces without burrs.
Stainless steel material highly prevents it from corrosion and rust.

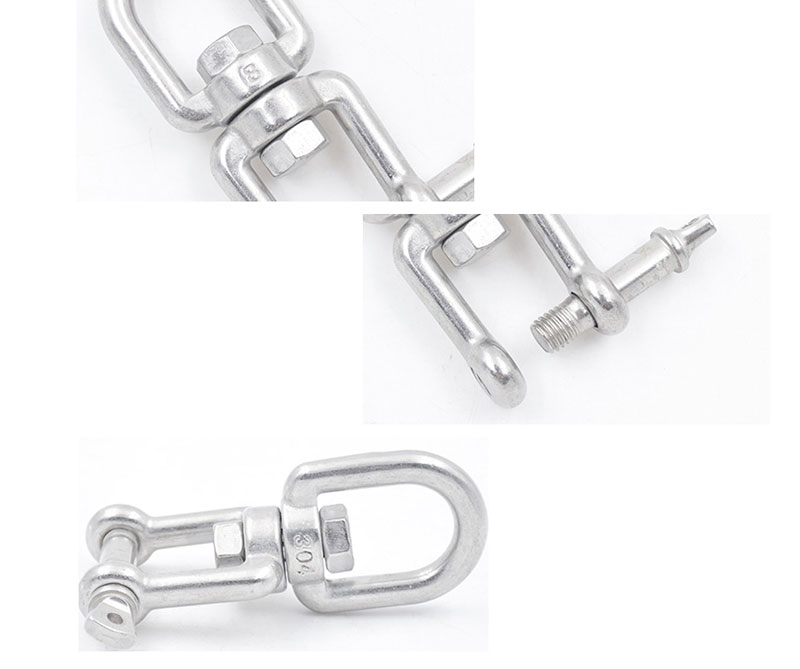

Smooth surfaces without burrs
Clear and deep thread
Solid structure Resistance to distortion Durable

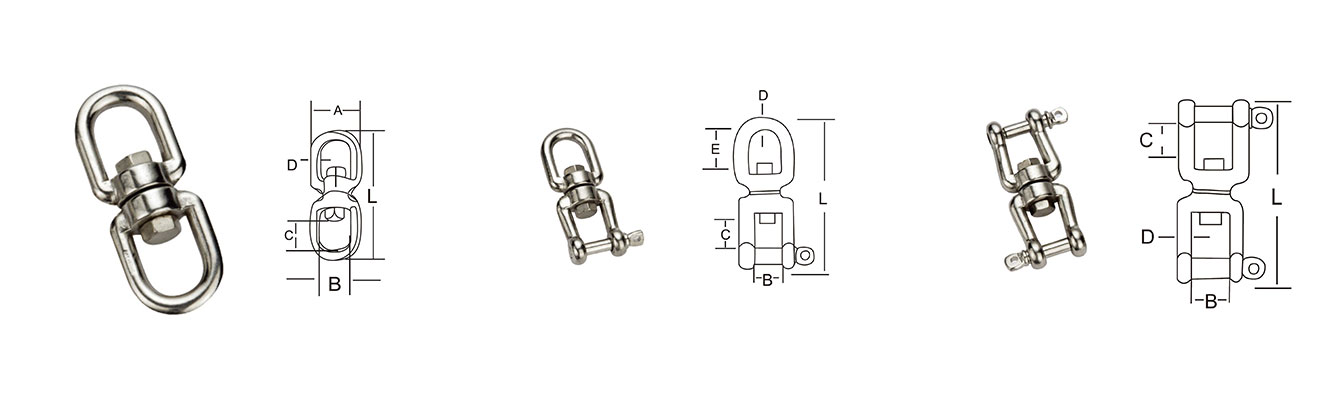

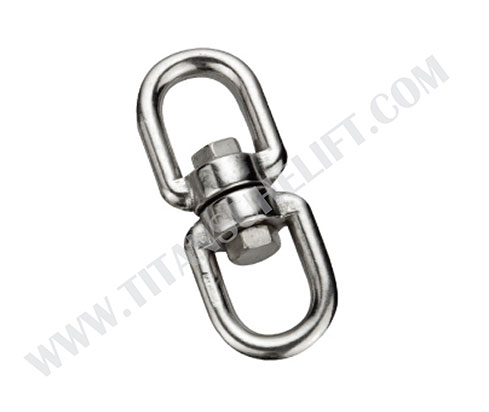

Swivel Eye and Eye Stainless Steel
Size | Dimension(mm) | W.L.L | N.W. | ||||
(mm) | A | B | C | D | L | (kg) | (kg/pc) |
5 | 23 | 13 | 13 | 5 | 60 | 820 | 0.034 |
6 | 27 | 15 | 15 | 6 | 65 | 1350 | 0.051 |
8 | 36 | 20 | 22 | 8 | 90 | 2500 | 0.12 |
10 | 44 | 24 | 27 | 10 | 115 | 3500 | 0.25 |
13 | 58 | 32 | 35 | 13 | 154 | 6000 | 0.62 |
16 | 71 | 39 | 45 | 16 | 188 | 10800 | 0.95 |
19 | 80 | 41 | 50 | 19 | 231 | 16100 | 1.93 |
22 | 91 | 47 | 52 | 22 | 254 | 22000 | 2.25 |
25 | 113 | 63 | 67 | 25 | 295 | 27000 | 4.45 |

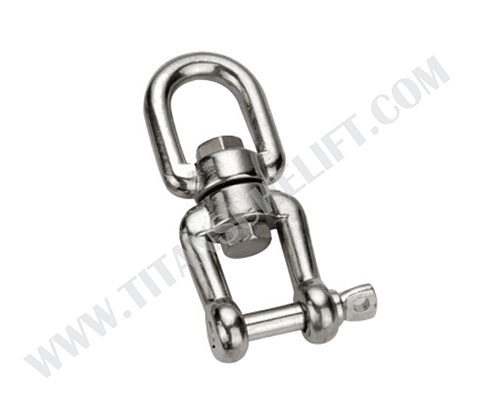

Swivel Eye and Jaw Stainless Steel
Size | Dimension(mm) | W.L.L | N.W. | ||||
(mm) | B | C | D | E | L | (kg) | (kg/pc) |
6 | 12 | 11 | 6 | 15 | 66 | 1350 | 0.06 |
8 | 16 | 16 | 8 | 22 | 94 | 2500 | 0.15 |
10 | 20 | 22 | 10 | 27 | 118 | 3500 | 0.29 |
13 | 26 | 28 | 13 | 35 | 152 | 6000 | 0.63 |
16 | 32 | 37 | 16 | 45 | 188 | 10800 | 1.12 |
19 | 38 | 45 | 19 | 50 | 229 | 27000 | 2 |

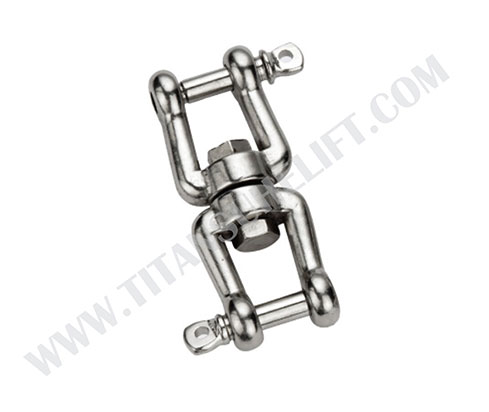

Swivel Jaw and Jaw Stainless Steel
Size | Dimension(mm) | W.L.L | N.W. | |||
(mm) | B | C | D | L | (kg) | (kg/pc) |
6 | 12 | 11 | 6 | 66 | 1350 | 0.07 |
8 | 16 | 16 | 8 | 94 | 2500 | 0.16 |
10 | 20 | 22 | 10 | 118 | 3500 | 0.33 |
13 | 26 | 28 | 13 | 152 | 6000 | 0.74 |
16 | 32 | 37 | 16 | 188 | 10800 | 1.28 |
19 | 38 | 45 | 19 | 229 | 27000 | 2.15 |
