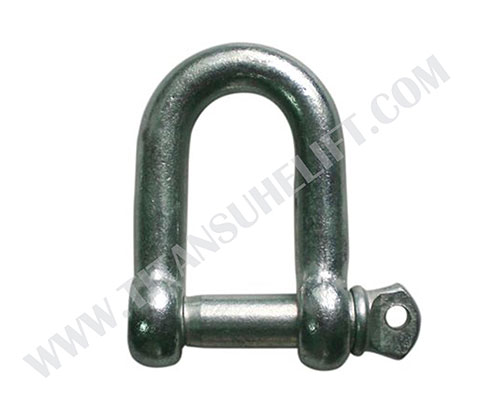

European type D shackle is a cost effective designed shackle for general connection purpose. Because of its competitive price and wide applications, this shackle is one of our most selling shackles. Different from heavy duty shackles that the pin is one size larger than the body, this shackle feature with same body and pin size. It is also called zinc plated D shackles or galvanized D shackles. The galvanization surface treatment offers a good corrosion resistance.

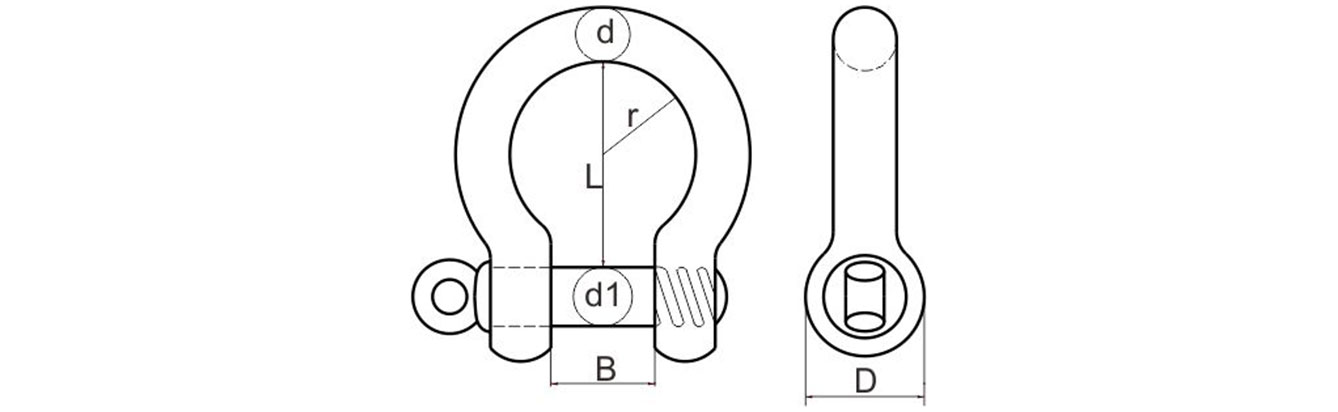

Size | W.L.L. | Dimension(mm) | Weight | |||
(mm) | (kg) | B | D | L | d/d1 | (kg/pc) |
5 | 80 | 11 | 10 | 19 | 5 | 0.019 |
6 | 100 | 14 | 13 | 25 | 6 | 0.034 |
8 | 200 | 18 | 16 | 32 | 8 | 0.07 |
10 | 320 | 20 | 19 | 38 | 10 | 0.13 |
12 | 520 | 26 | 25 | 51 | 12 | 0.24 |
16 | 800 | 33 | 32 | 64 | 16 | 0.5 |
20 | 1100 | 40 | 38 | 76 | 20 | 0.8 |
22 | 1500 | 50 | 44 | 89 | 22 | 1.3 |
25 | 2100 | 57 | 51 | 100 | 25 | 2 |
28 | 3000 | 68 | 57 | 115 | 28 | 3 |
32 | 3500 | 73 | 64 | 127 | 32 | 4.3 |
38 | 5000 | 85 | 76 | 152 | 38 | 6.75 |
44 | 7000 | 96 | 90 | 180 | 45 | 12.5 |
50 | 8000 | 108 | 102 | 200 | 50 | 17.5 |
Titansuhe offers custom wire rope components for wide range of lifting tools and material handling equipment which can be used either for lifting systems or to rigging a lashing system.
