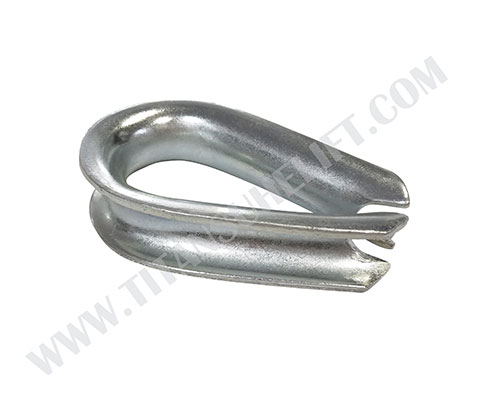

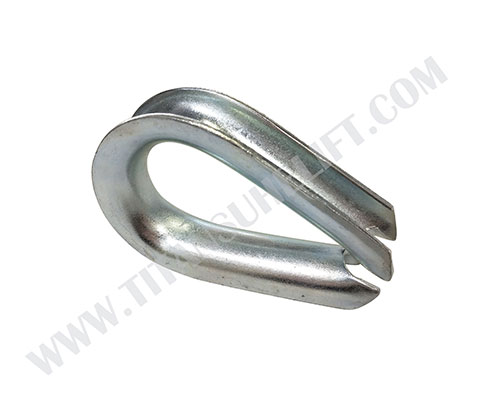

G411 is a standard duty wire rope thimble with electric galvanized surface treatment. This thimble provides a hard eye in a wire rope lifting sling. The galvanized surface increases the corrosion resistance. It is recommended for light duty applications.

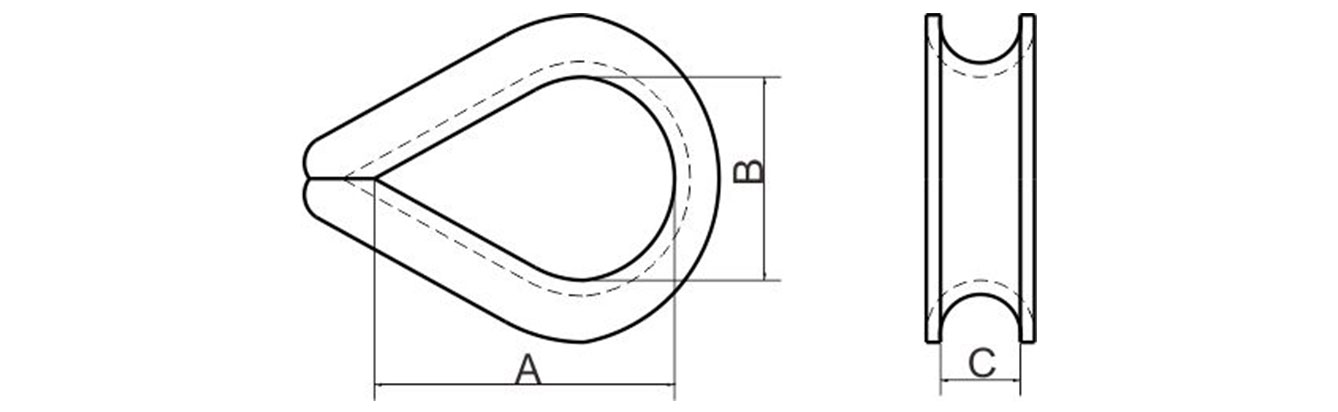

Size | Dimension(in) | Weight | ||
(in) | A | B | C | (kg/pc) |
1/8 | 1.31 | 0.69 | 0.16 | 0.013 |
3/16 | 1.31 | 0.69 | 0.22 | 0.013 |
1/4 | 1.31 | 0.69 | 0.28 | 0.013 |
5/16 | 1.5 | 0.81 | 0.34 | 0.018 |
3/8 | 1.63 | 0.94 | 0.41 | 0.029 |
1/2 | 1.88 | 1.13 | 0.53 | 0.057 |
5/8 | 2.25 | 1.38 | 0.66 | 0.113 |
3/4 | 2.5 | 1.63 | 0.78 | 0.227 |
7/8 | 3.5 | 1.88 | 0.94 | 0.385 |
1 | 4.25 | 2.5 | 1.06 | 0.453 |
1-1/8-1-1/4 | 4.5 | 2.75 | 1.31 | 0.793 |
1 3/8 | 7.54 | 3.54 | 1.42 | 1.266 |
1 1/2 | 8.11 | 4.13 | 1.56 | 1.42 |
1 5/8 | 9.06 | 4.33 | 1.69 | 1.726 |
1 3/4 | 9.59 | 4.33 | 1.81 | 2.216 |
1 7/8 | 10.4 | 4.5 | 2.05 | 2.333 |
2 | 10.63 | 4.5 | 2.09 | 2.8 |
2 1/2 | 11.63 | 5.98 | 2.52 | 4 |
